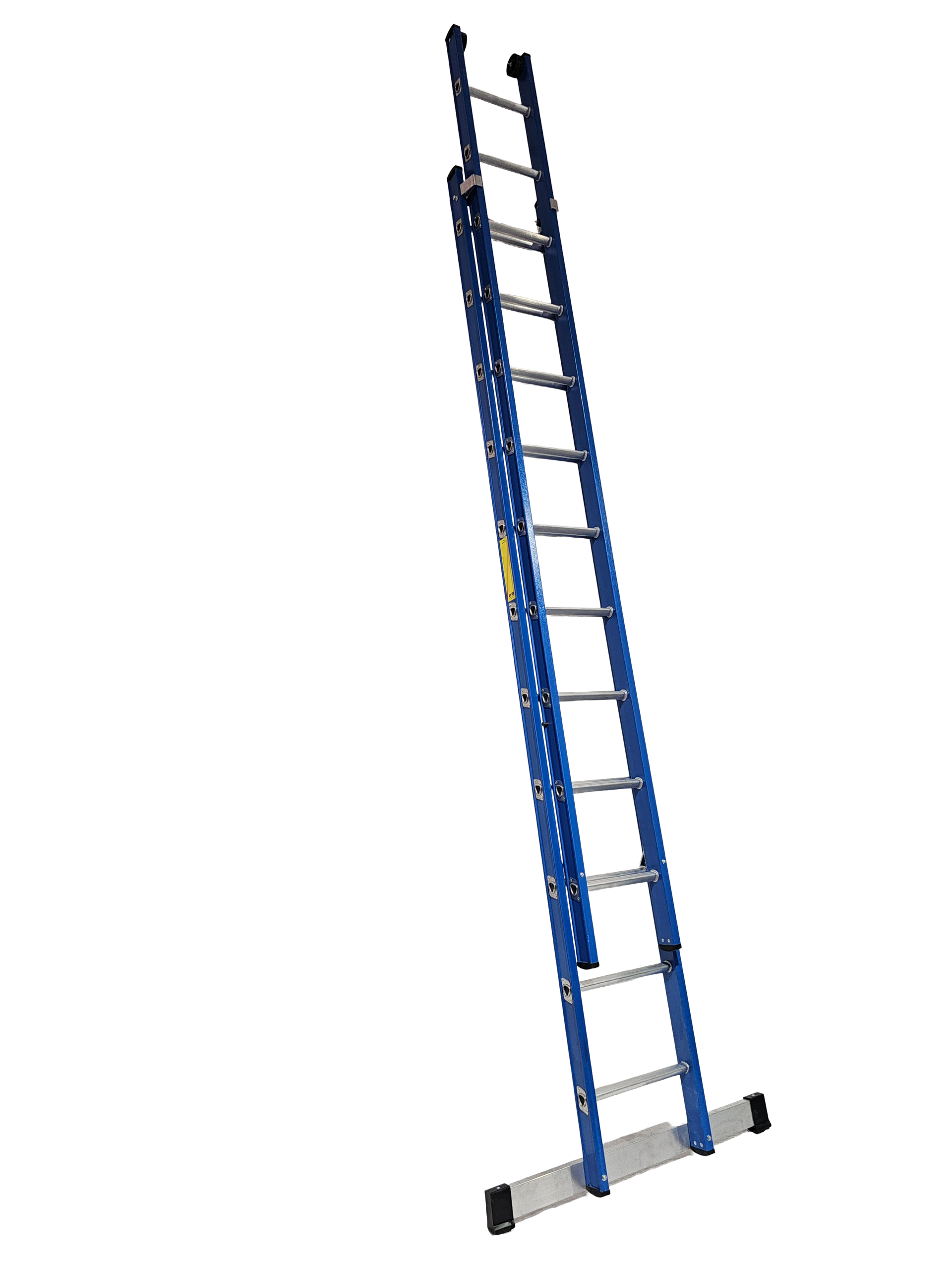

Ensure maximum safety, comfort, and efficiency for electrical and general tasks with the UK-made GFNELT Glassfibre Extension Ladders, designed for superior non-conductive performance and durability.
Code | No. of Sections | No. of Rungs Per Section | Weight kg | Closed Length mm | Extended Length mm | Max Standing Height mm* | Approx. Working Height mm* | Largest Ladder Section Width mm | Smallest Ladder Section Width mm | Stabiliser Width mm | Individual Section Depth mm | Full Ladder Depth mm | Space Between Rungs mm |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

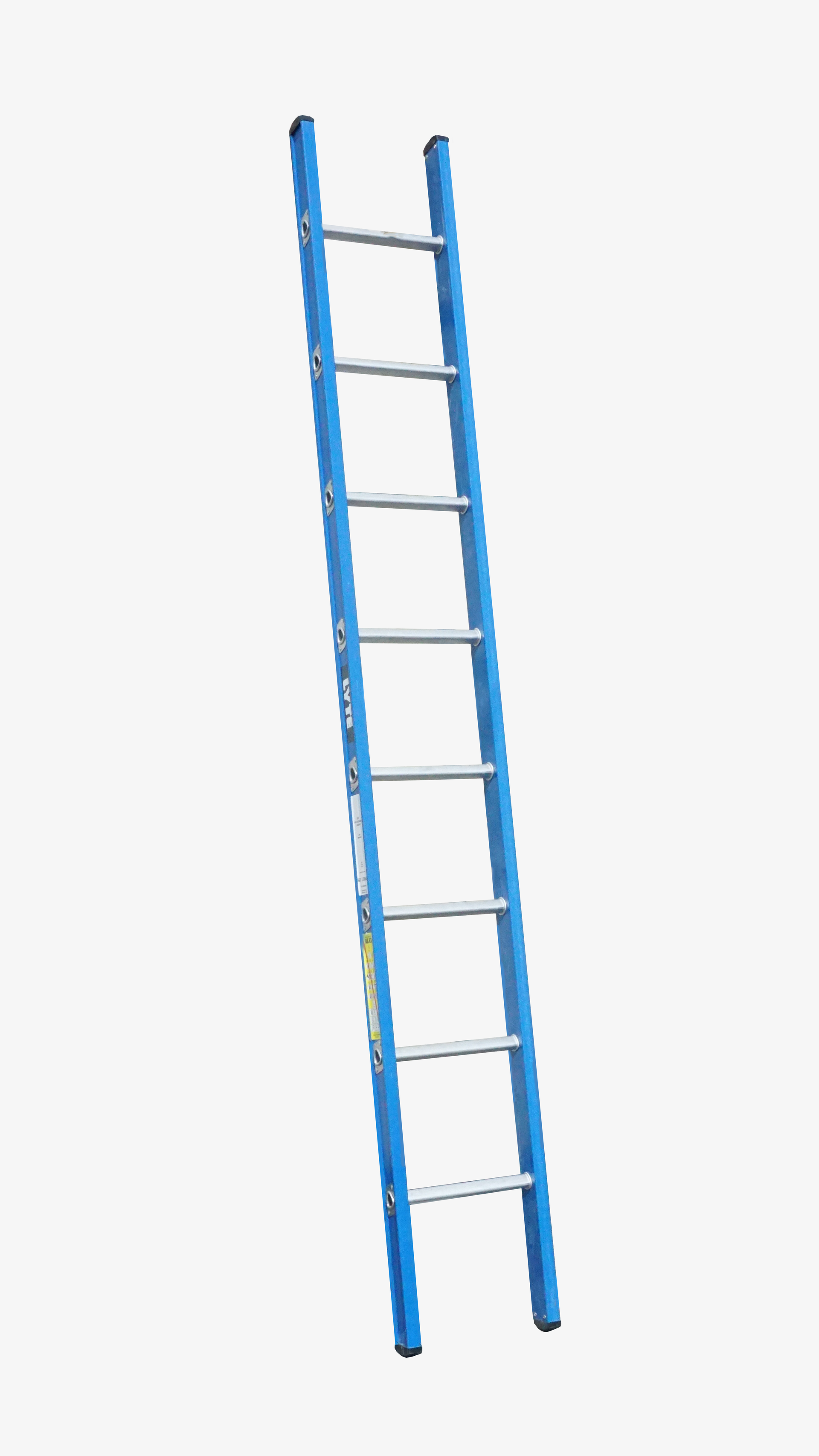

GFNELT125 | Single | 8 | 7.50 | 2540 | 2540 | 1790 | 3540 | 344 | 344 | N/A | 75 | 75 | 285 |

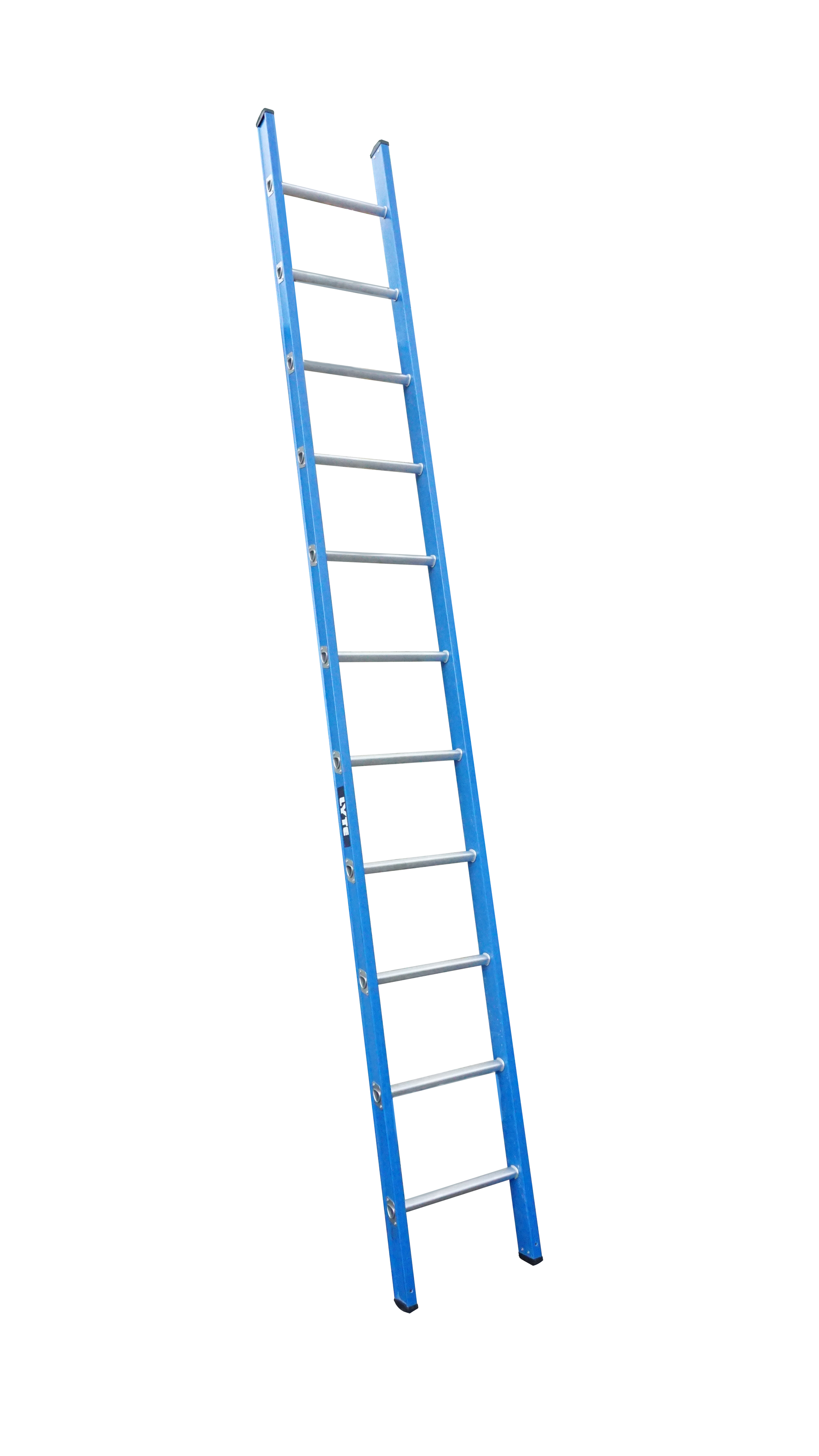

GFNELT130 | Single | 11 | 9.00 | 3330 | 3330 | 2580 | 4330 | 344 | 344 | 1010 | 75 | 75 | 285 |

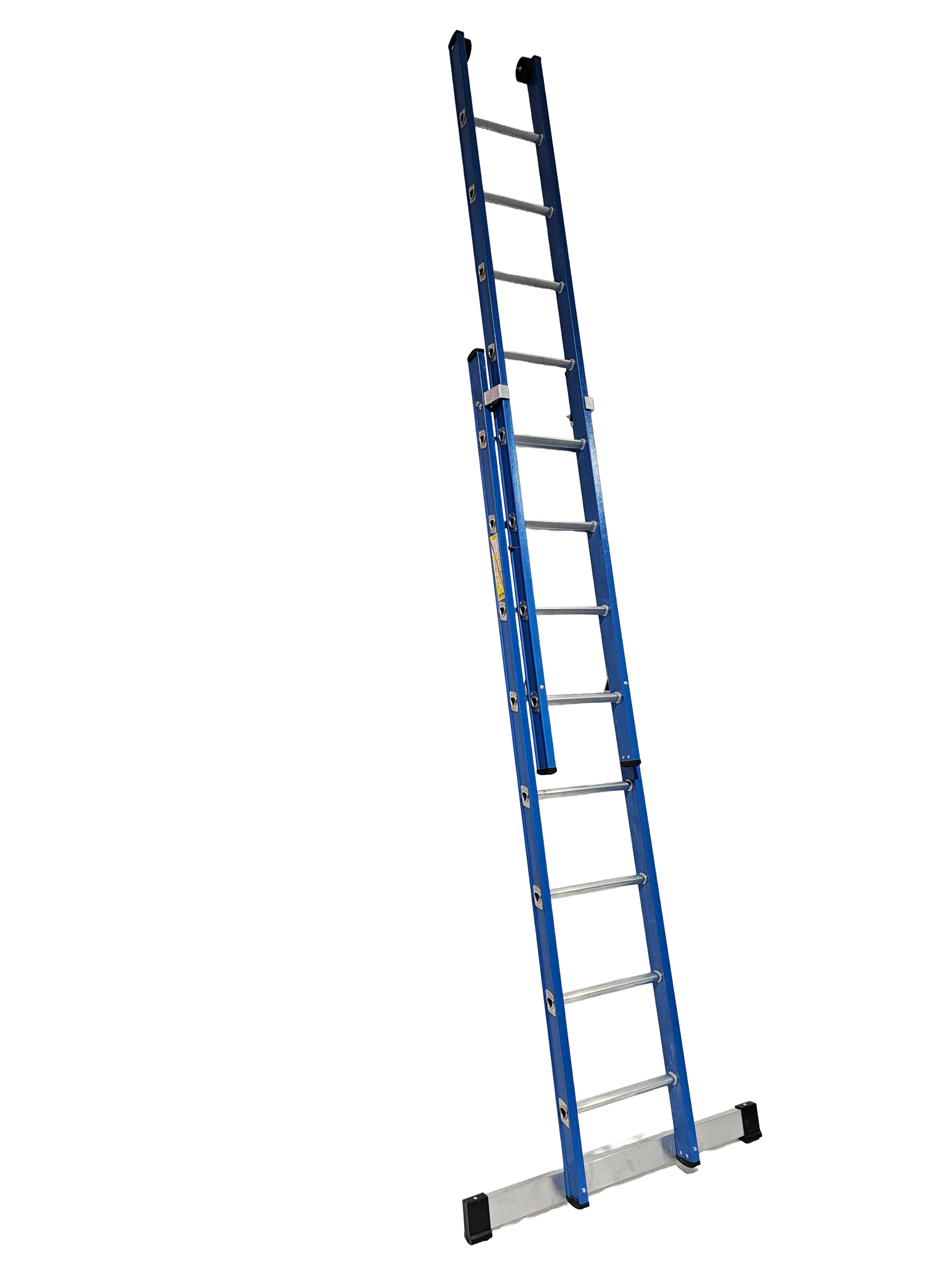

GFNELT225 | Double | 8 | 15.00 | 2540 | 3900 | 3150 | 4900 | 415 | 344 | 1010 | 75 | 140 | 285 |

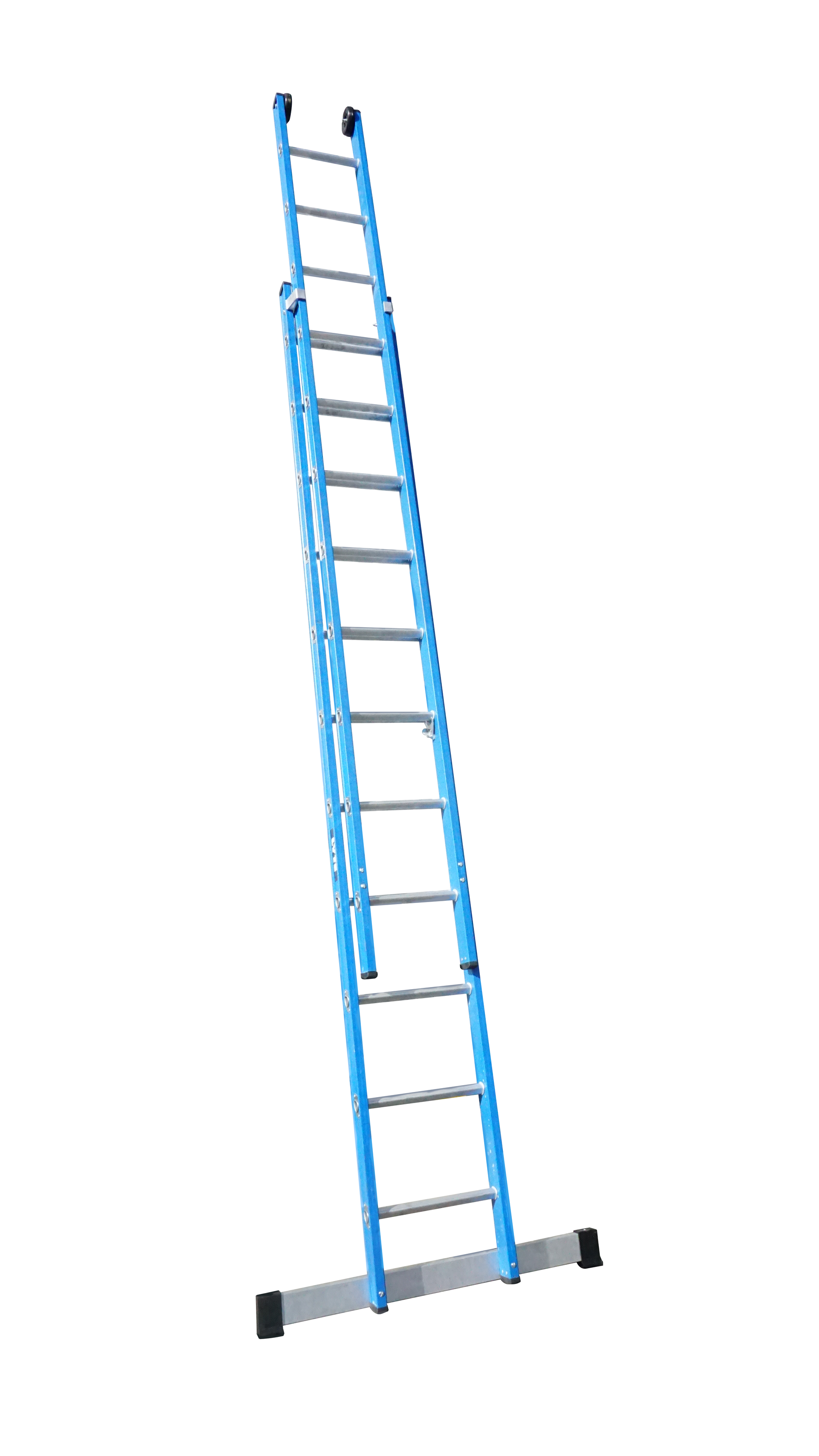

GFNELT230 | Double | 11 | 18.00 | 3330 | 5330 | 4580 | 6330 | 415 | 344 | 1010 | 75 | 140 | 285 |

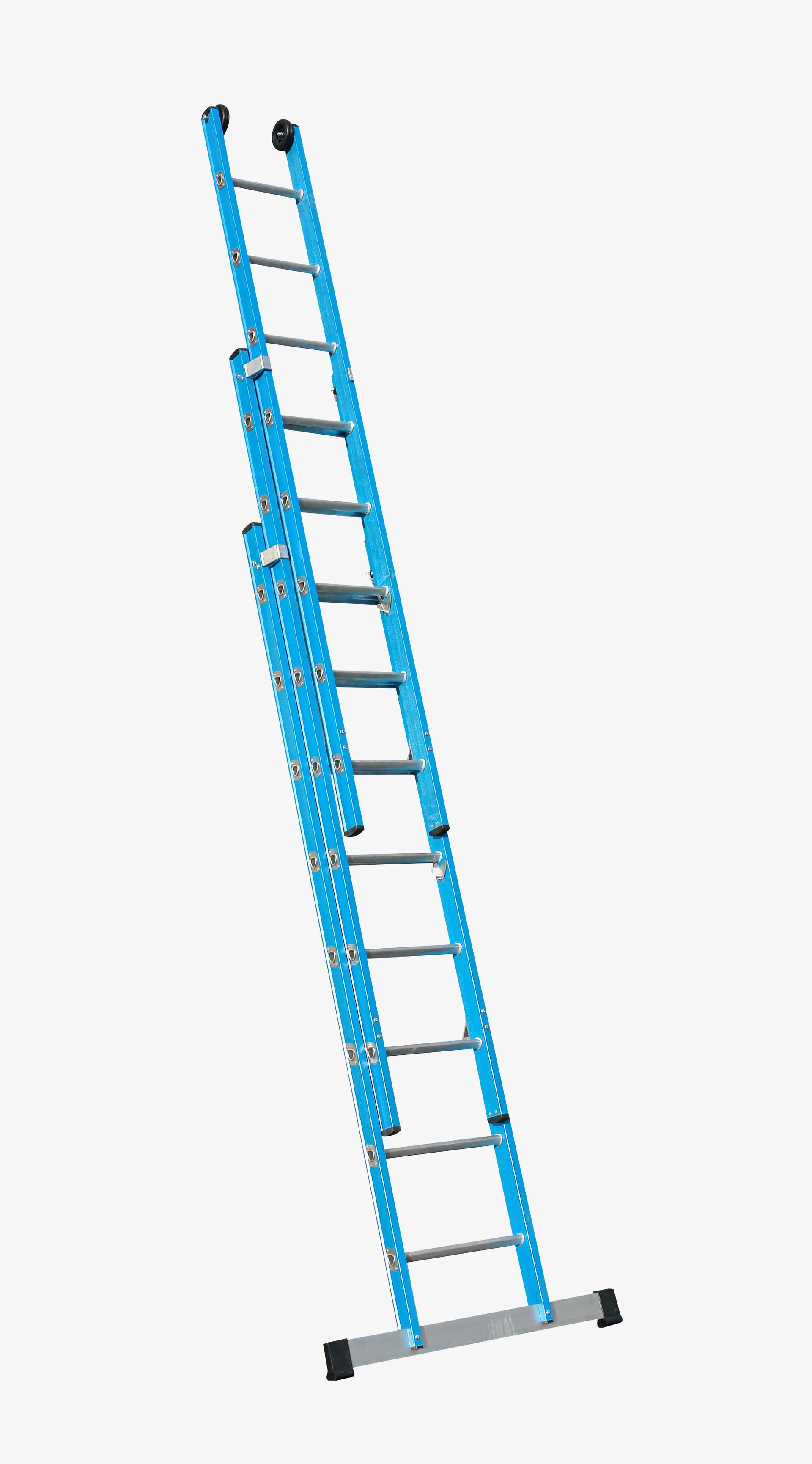

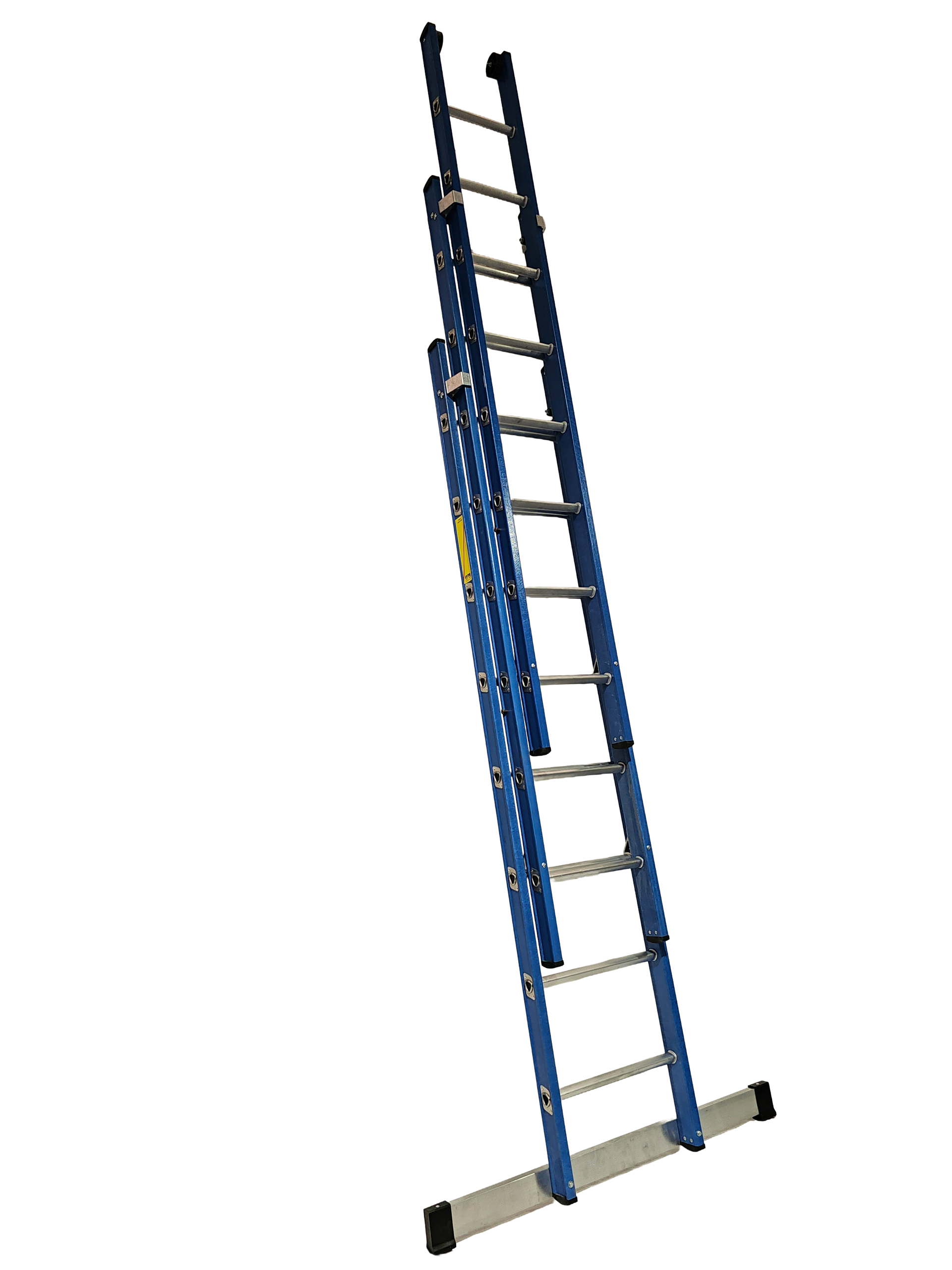

GFNELT325 | Triple | 8 | 22.50 | 2540 | 6000 | 5250 | 7000 | 485 | 344 | 1210 | 75 | 195 | 285 |

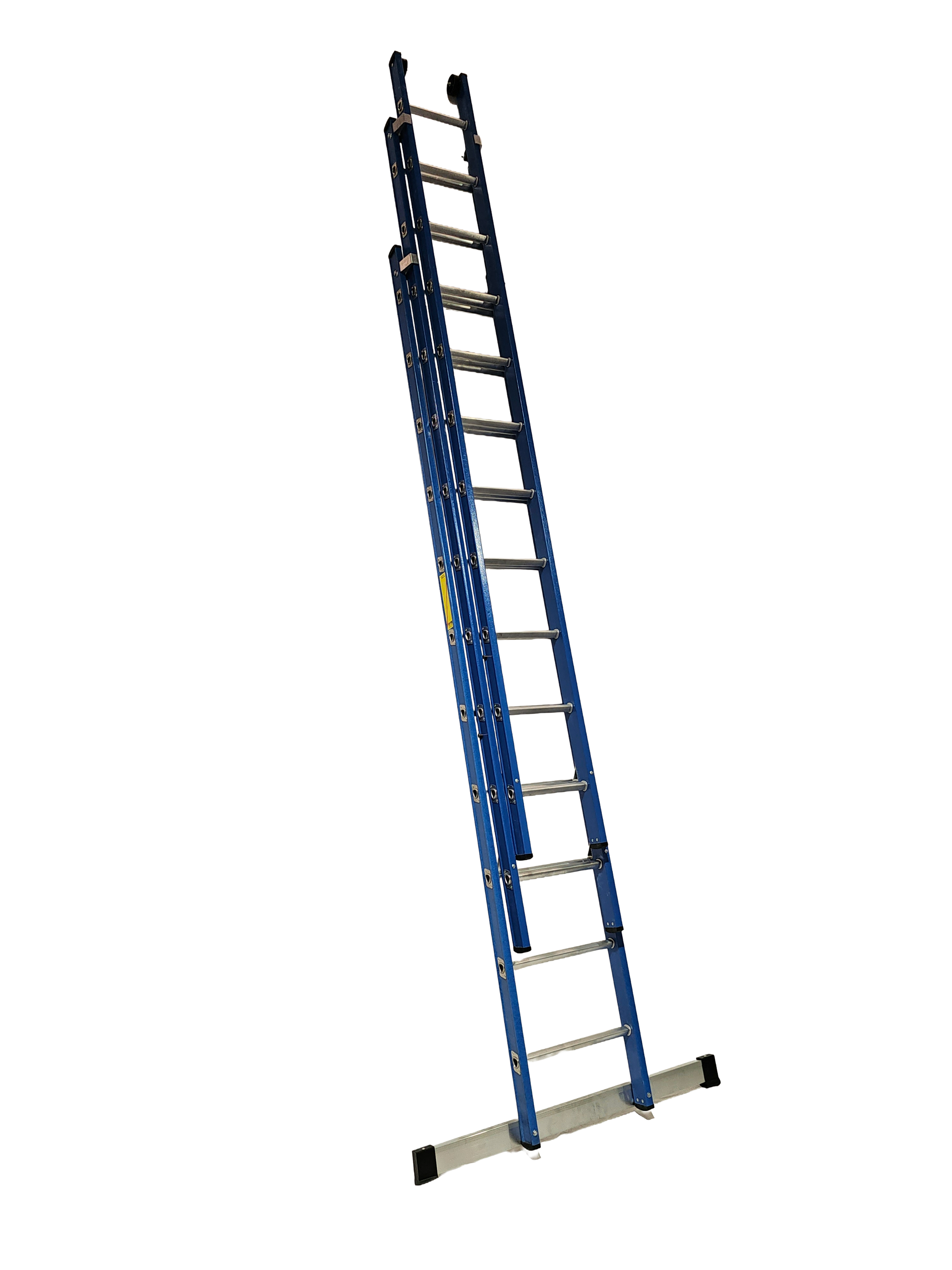

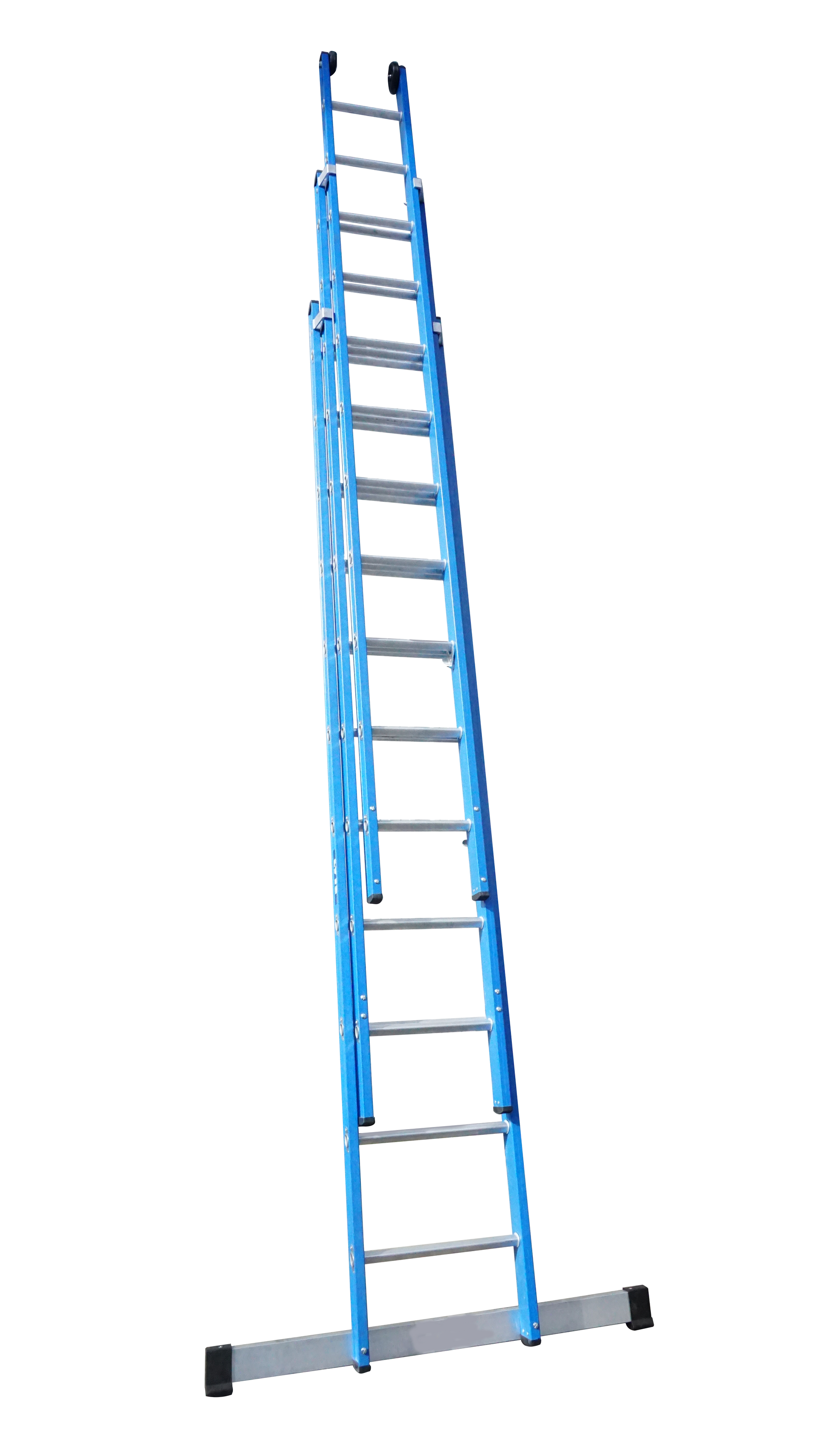

GFNELT330 | Triple | 11 | 28.00 | 3330 | 7320 | 6570 | 8320 | 485 | 344 | 1210 | 75 | 195 | 285 |
*Where applicable, the Approx. Working Height is calculated by adding 1750m (5’8”) to the Max Standing Height. This assumes the ladder is positioned at a 75° angle.
Please swipe across the table to view extra dimensions.
