Glassfibre Swingback Stepladders

NGFBB Series
A yellow ladder with white steps on a white background.
A logo for lyte en131 professional is shown on a white background.
A logo for bsi iso 9001 quality management systems certified

Stay safe and efficient on the job with the NGFBB Glassfibre Swingback Stepladders. They are UK-made with non-conductive glassfibre stiles designed for professionals working around electricity.

Key Benefits

  • Non-Conductive Safety: Glassfibre stiles ensure safe use around electrical hazards.
  • UK-Made Quality: Proudly manufactured in the UK with a focus on quality and durability.
  • Strength & Stability: Improved stiles and rigid box section back legs, cross braces, and “K” straps for increased strength and stability.
  • Tool Storage: Plastic tool tray to hold tools and equipment while working at height.
  • Lightweight & Durable: Compact design, tested to withstand heavy-duty use with a load capacity of up to 150kg.
  • Optional Extras: Attached handrails for added stability and safety.

Available in 7 sizes

Code No. of Treads Weight kg Closed Height mm Open Height mm Max Standing Height mm* Approx. Working Height mm* Base Ladder Width mm Base Depth When Open mm Closed Ladder Depth mm Top Ladder Width mm Depth of Tread Space Between Treads Handrail Option Available

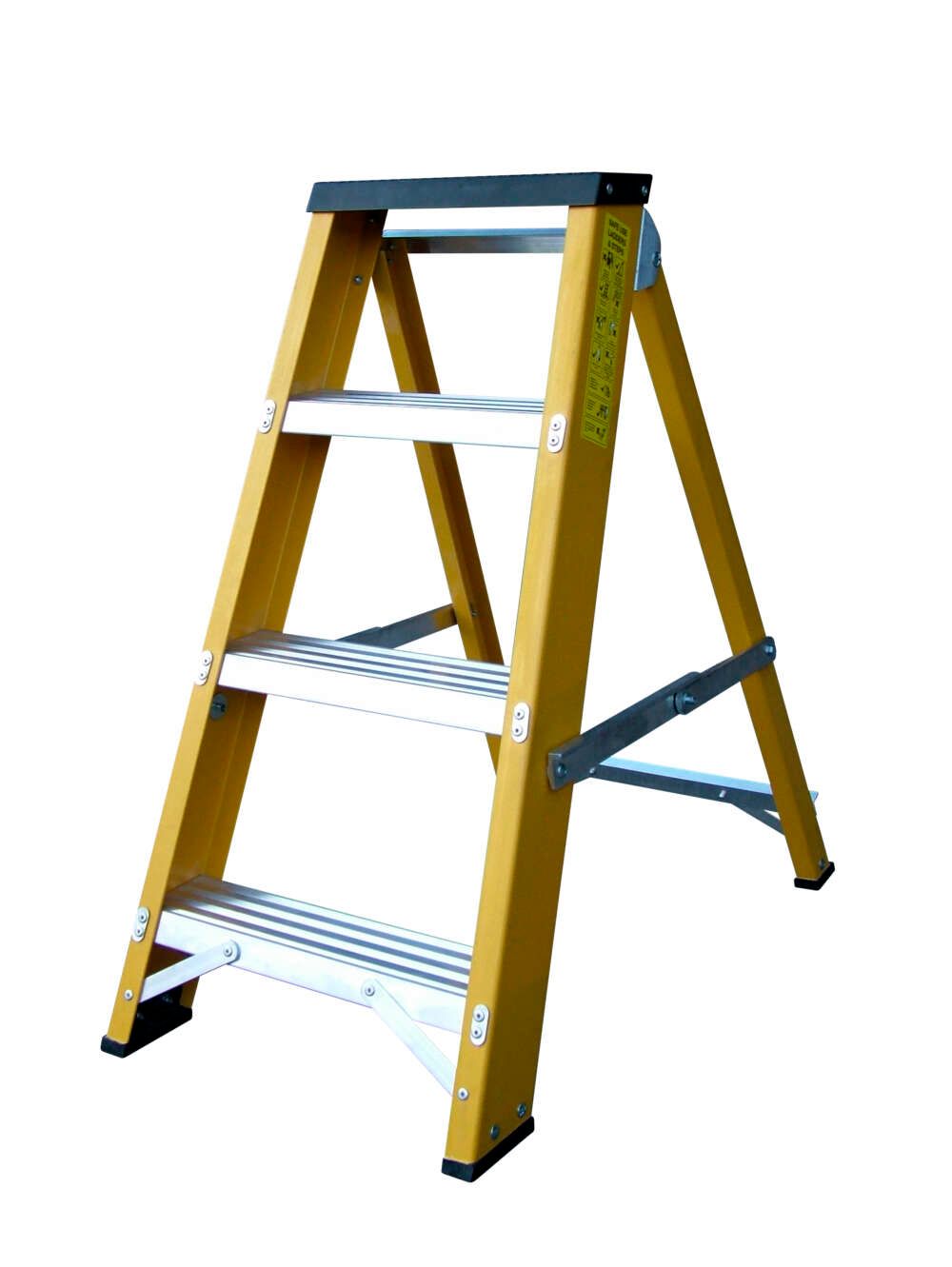

NGFBB4 4 4.0 865 775 130 1880 400 720 145 315 80 240 Yes

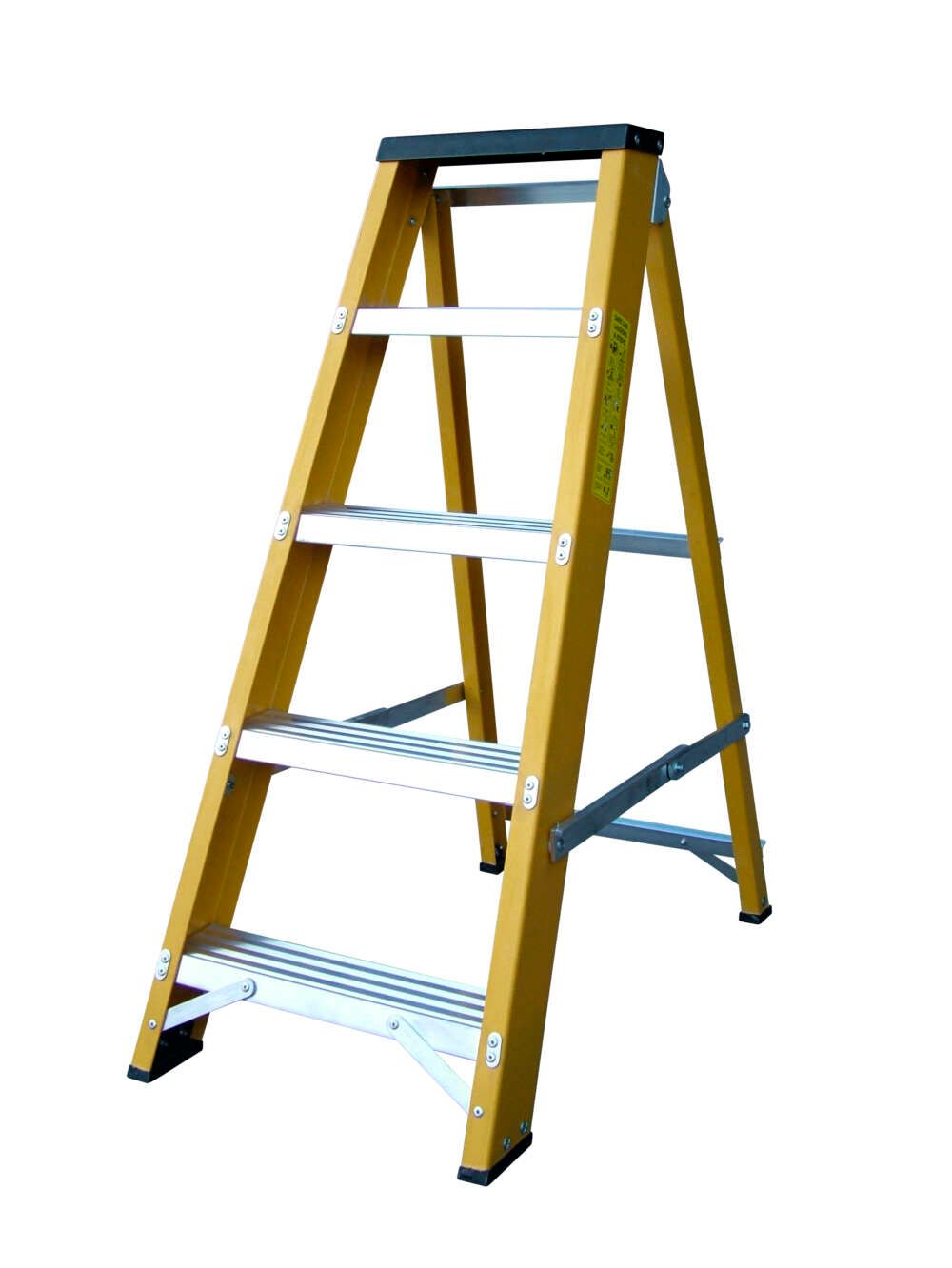

NGFBB5 5 5.0 1150 990 345 2095 420 790 145 315 80 240 Yes

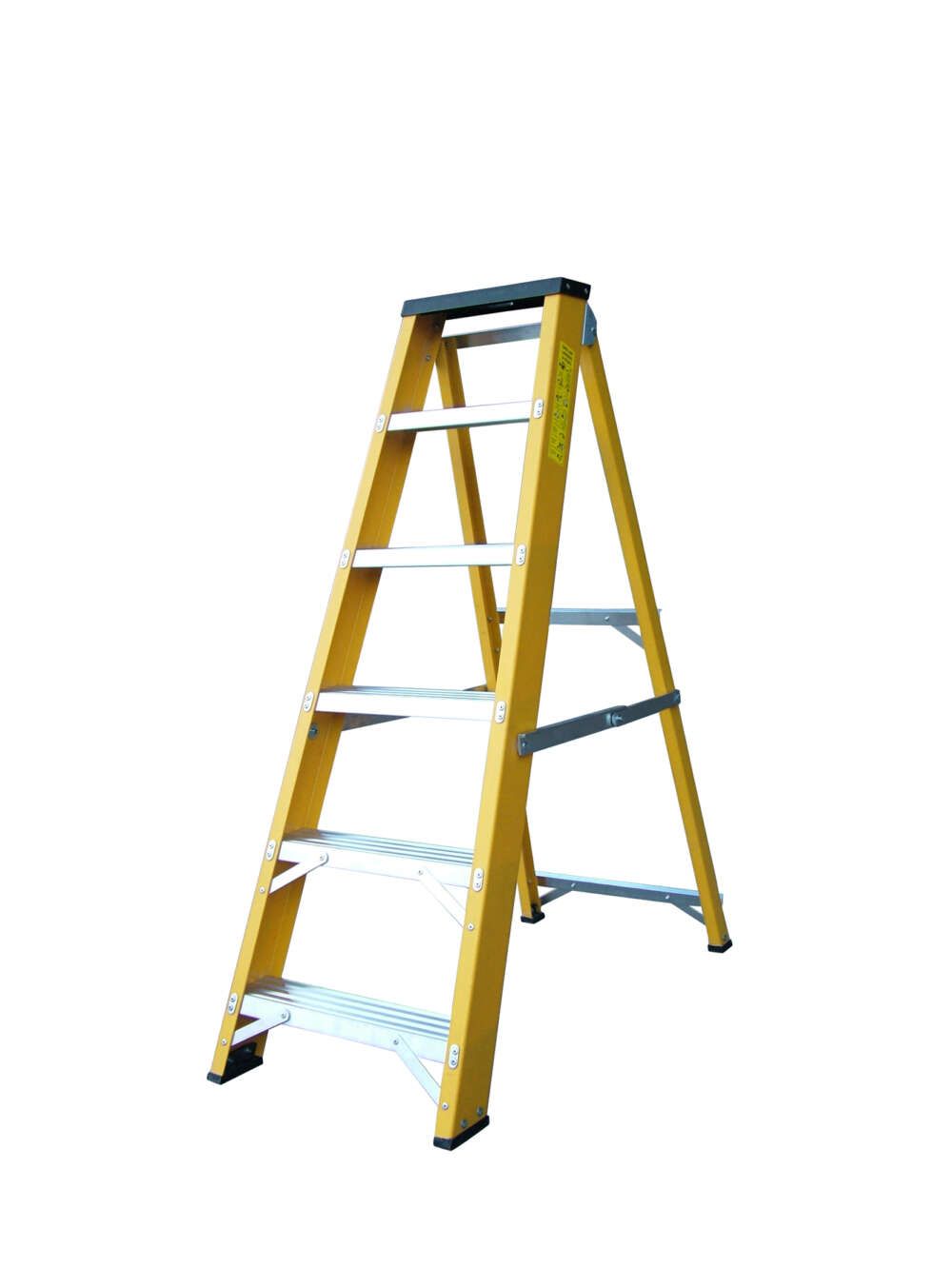

NGFBB6 6 6.0 1345 1215 565 2315 445 950 145 315 80 240 Yes

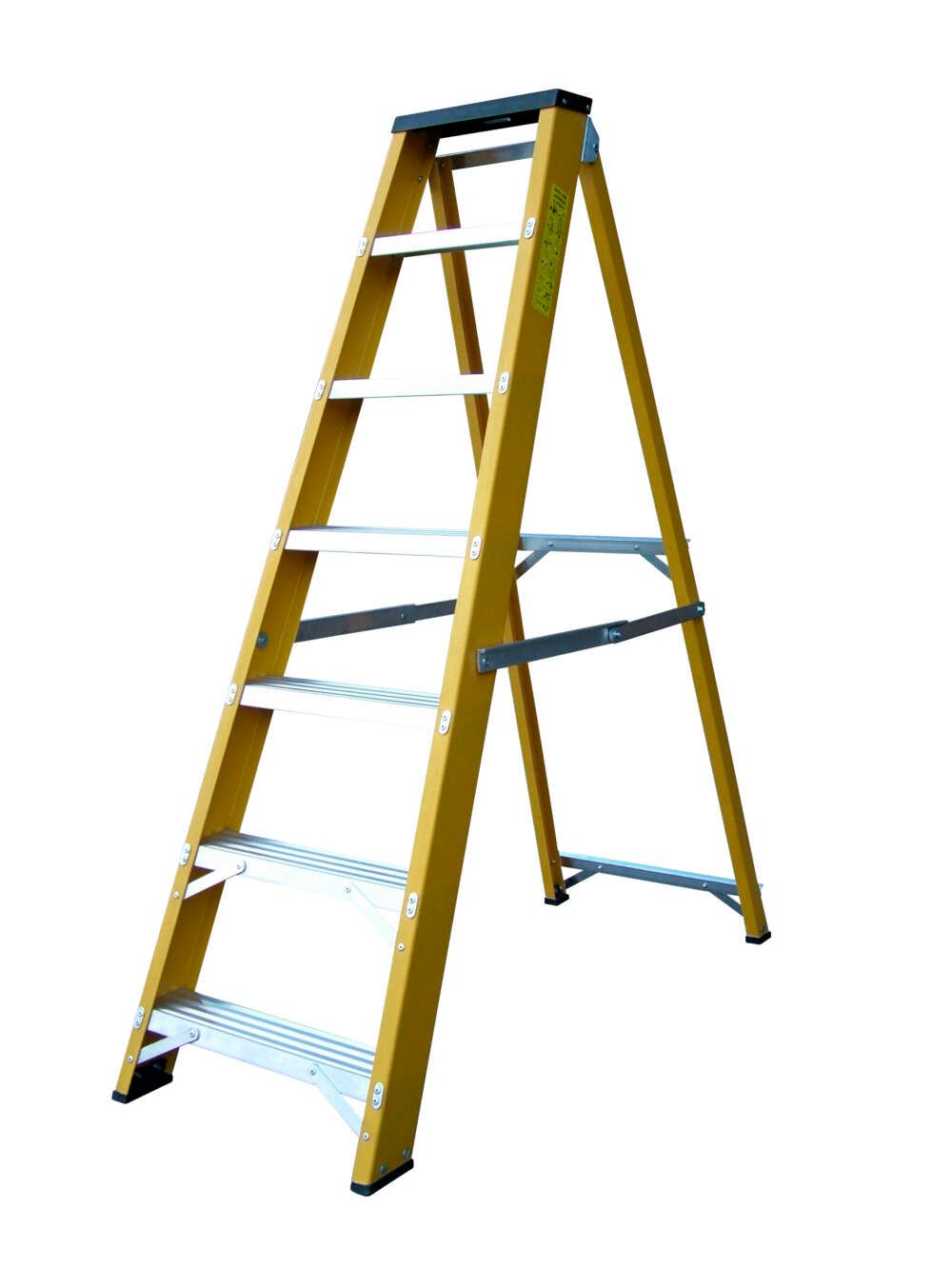

NGFBB7 7 7.0 1585 1435 785 2535 470 1140 145 315 80 240 Yes

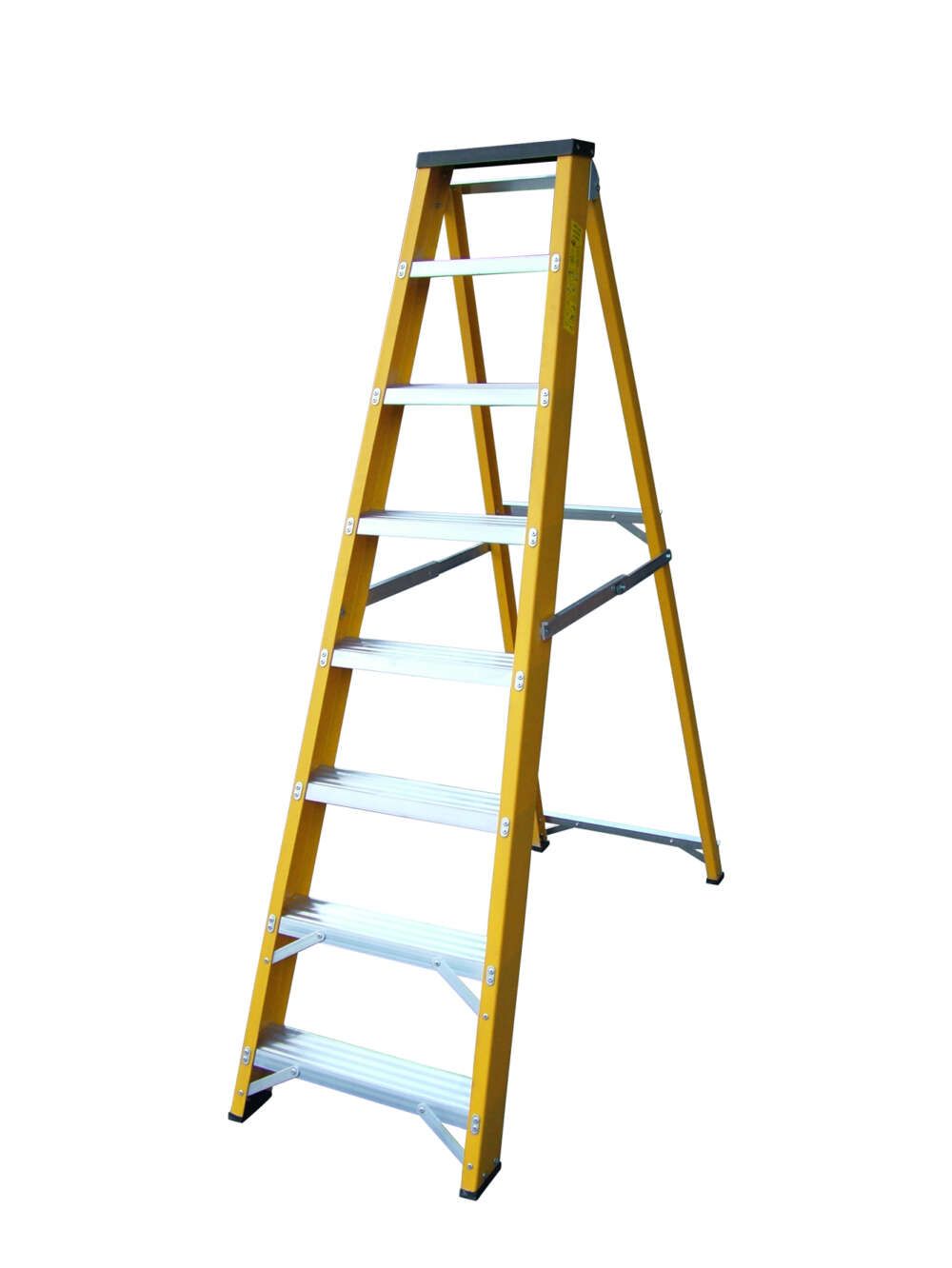

NGFBB8 8 7.5 1830 1665 1005 2755 495 1310 145 315 80 240 Yes

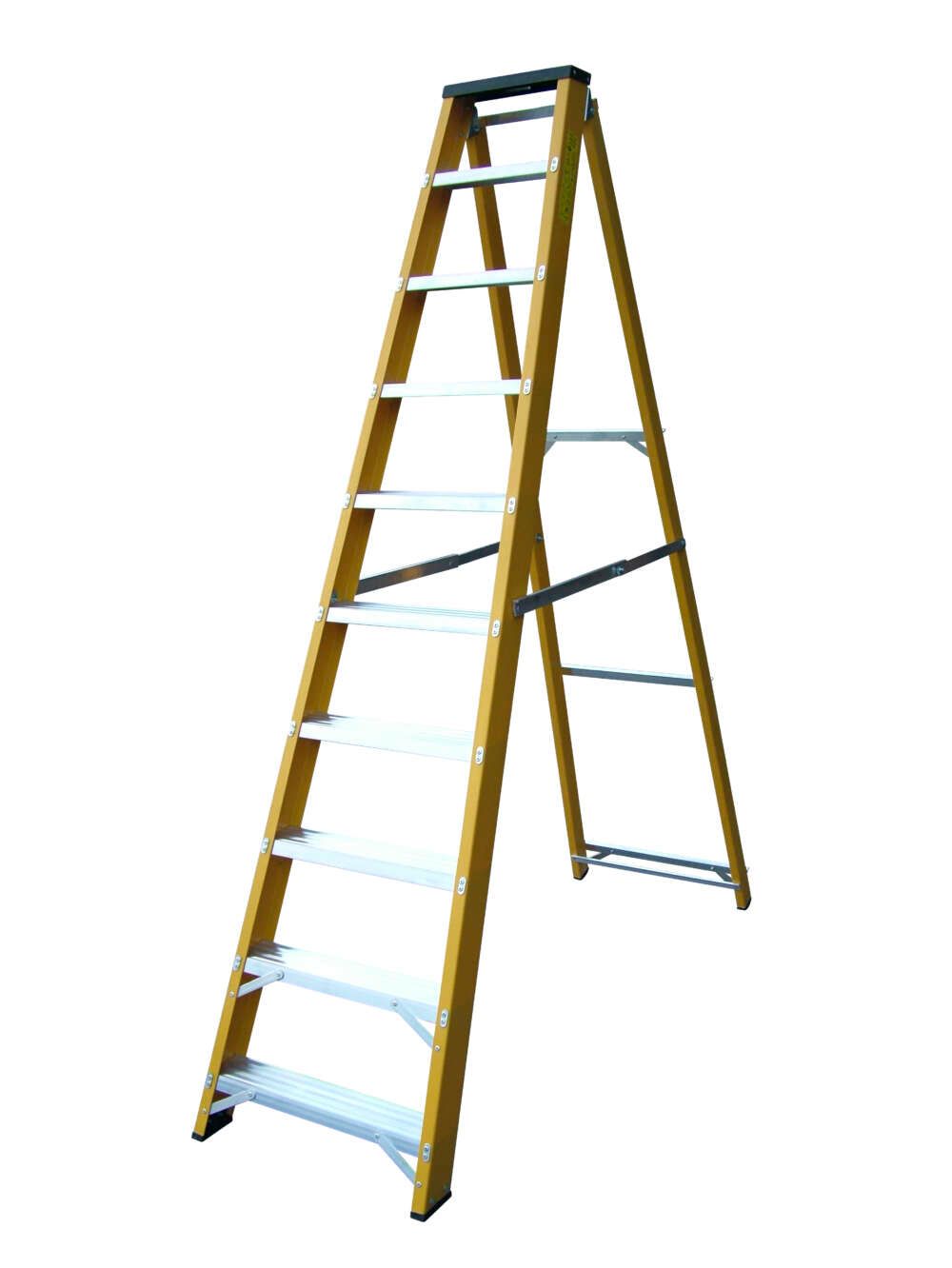

NGFBB10 10 12.0 2305 2105 1445 3195 545 1700 145 315 80 240 Yes

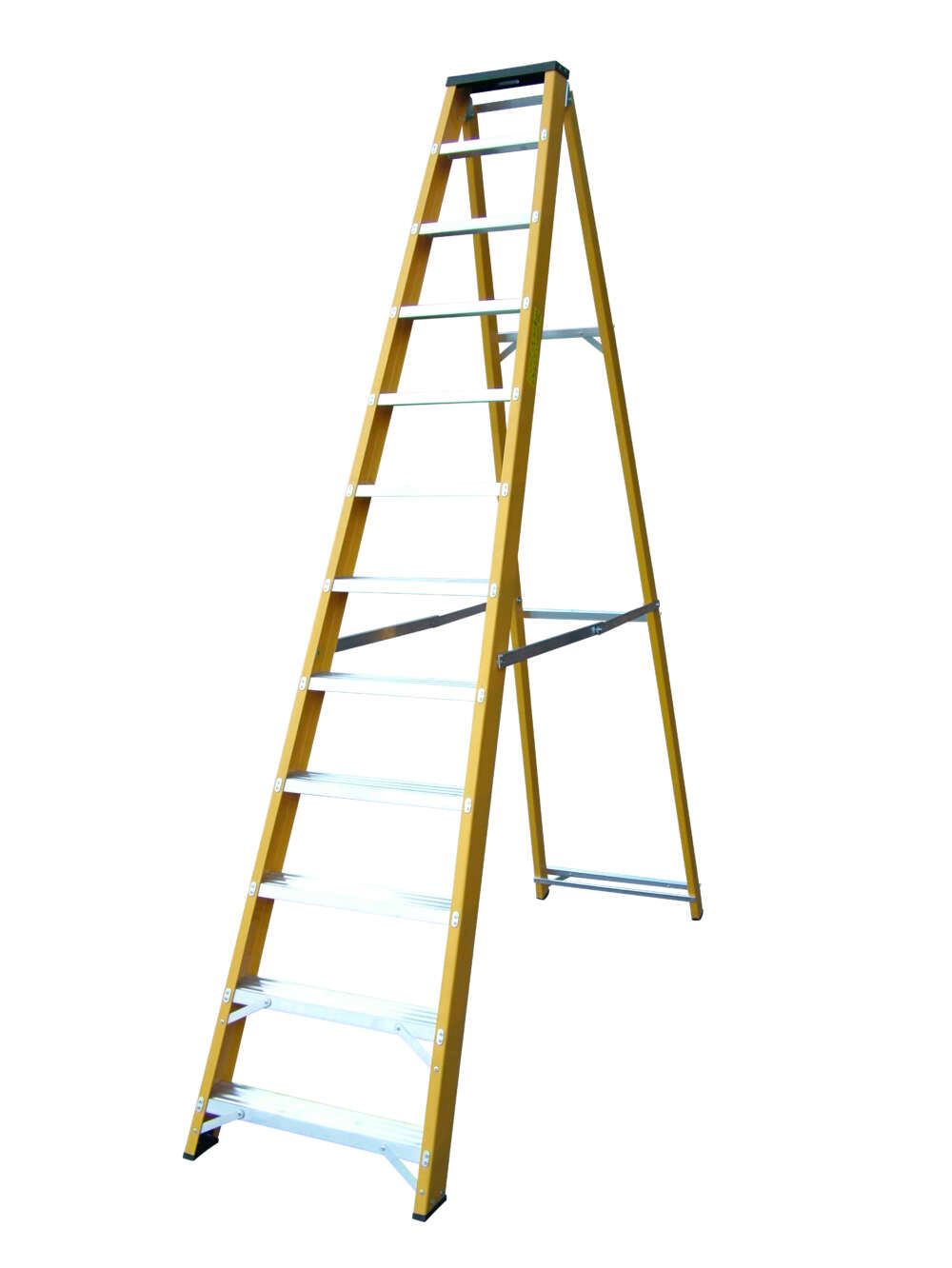

NGFBB12 12 15.0 2610 2540 1885 3635 595 2000 145 315 80 240 Yes

*Where applicable, the Approx. Working Height is calculated by adding 1750mm (5’8”) to the Max Standing Height.

Please swipe across the table to view extra dimensions.
