Glassfibre WideStep

NYFWP Series

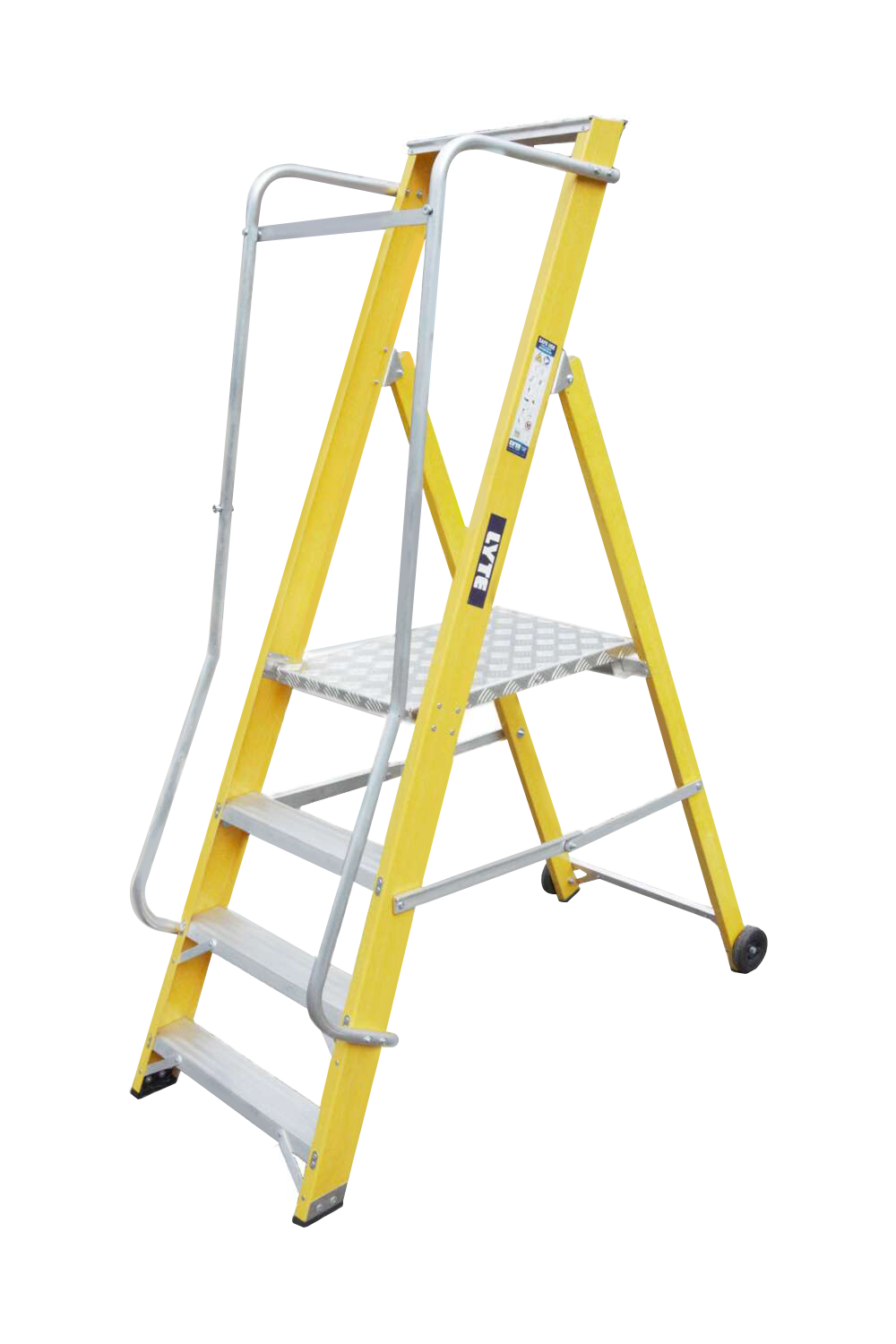

A yellow ladder with white steps on a white background.
A logo for lyte en131 professional is shown on a white background.
A logo for bsi iso 9001 quality management systems certified

Ensure safe and efficient work in electrical environments with the NGFWP Glassfibre WideStep, designed for industrial and trade use. This UK-made, EN131-2 certified WideStep features non-conductive stiles, offering stability and reliability in hazardous conditions.

Key Benefits

  • Non-Conductive: Glassfibre stiles protect against electrical hazards, non-conductive up to 30,000 volts.
  • Secure and Spacious: Includes a wide 400mm x 600mm non-slip platform for enhanced stability, plus folding safety gate for added security.
  • Portable Design: Compact with rear wheels for easy transport and storage.
  • High Load Capacity: Supports up to 150kg, ensuring reliability for industrial tasks.

Available in 7 sizes

Code No. of Treads Weight kg Closed Height mm Open Height mm Platform Height mm* Approx. Working Height mm* Base Ladder Width mm Base Depth When Open mm Closed Ladder Depth mm** Top Ladder Width mm Depth of Tread Space Between Treads

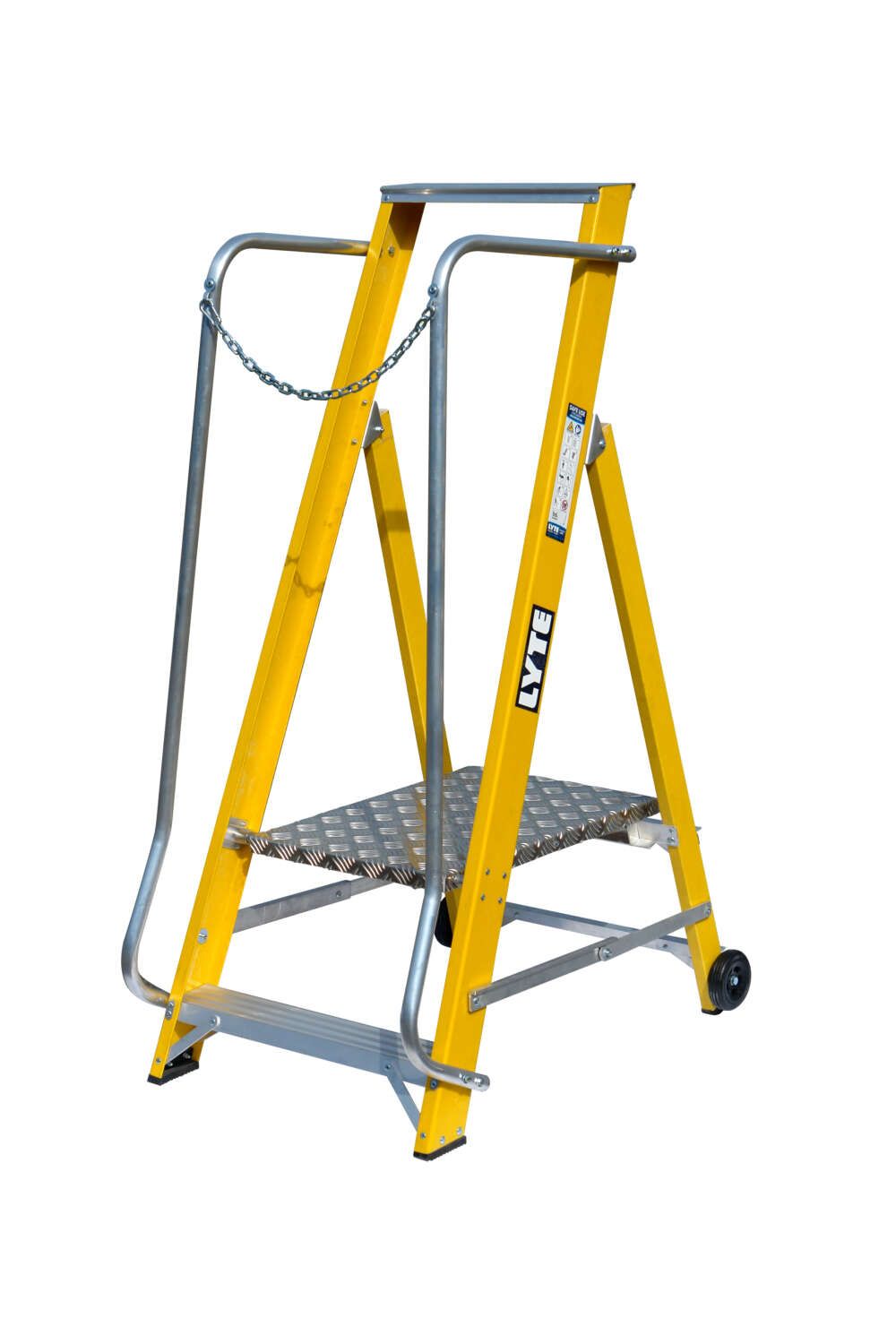

NYFWP2 2 8.0 1530 1410 390 2140 620 880 490 430 80 240

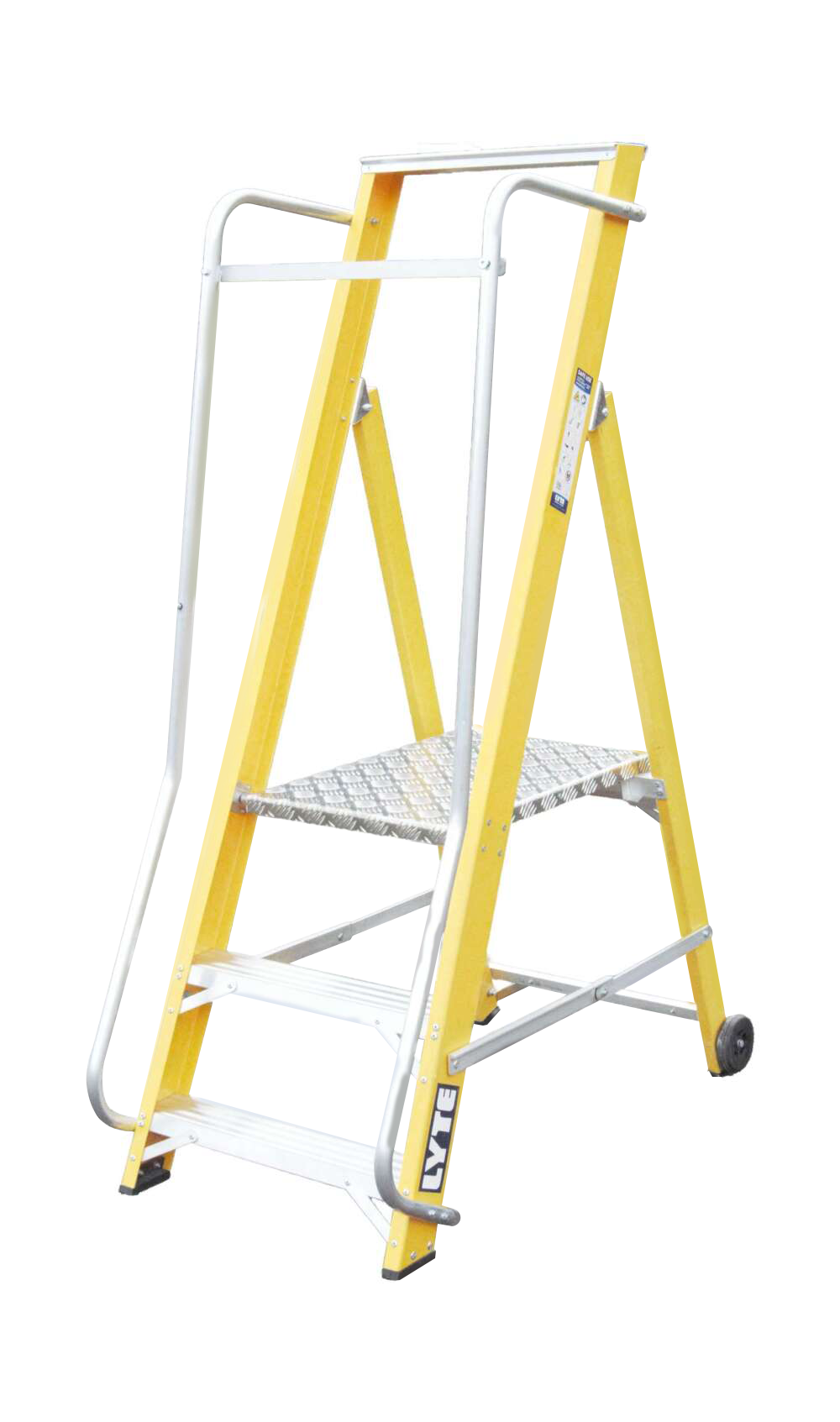

NYFWP3 3 9.0 1780 1620 614 2364 610 1070 490 487 80 240
NYFWP4 4 11.0 2015 1840 830 2580 630 1340 490 487 80 240

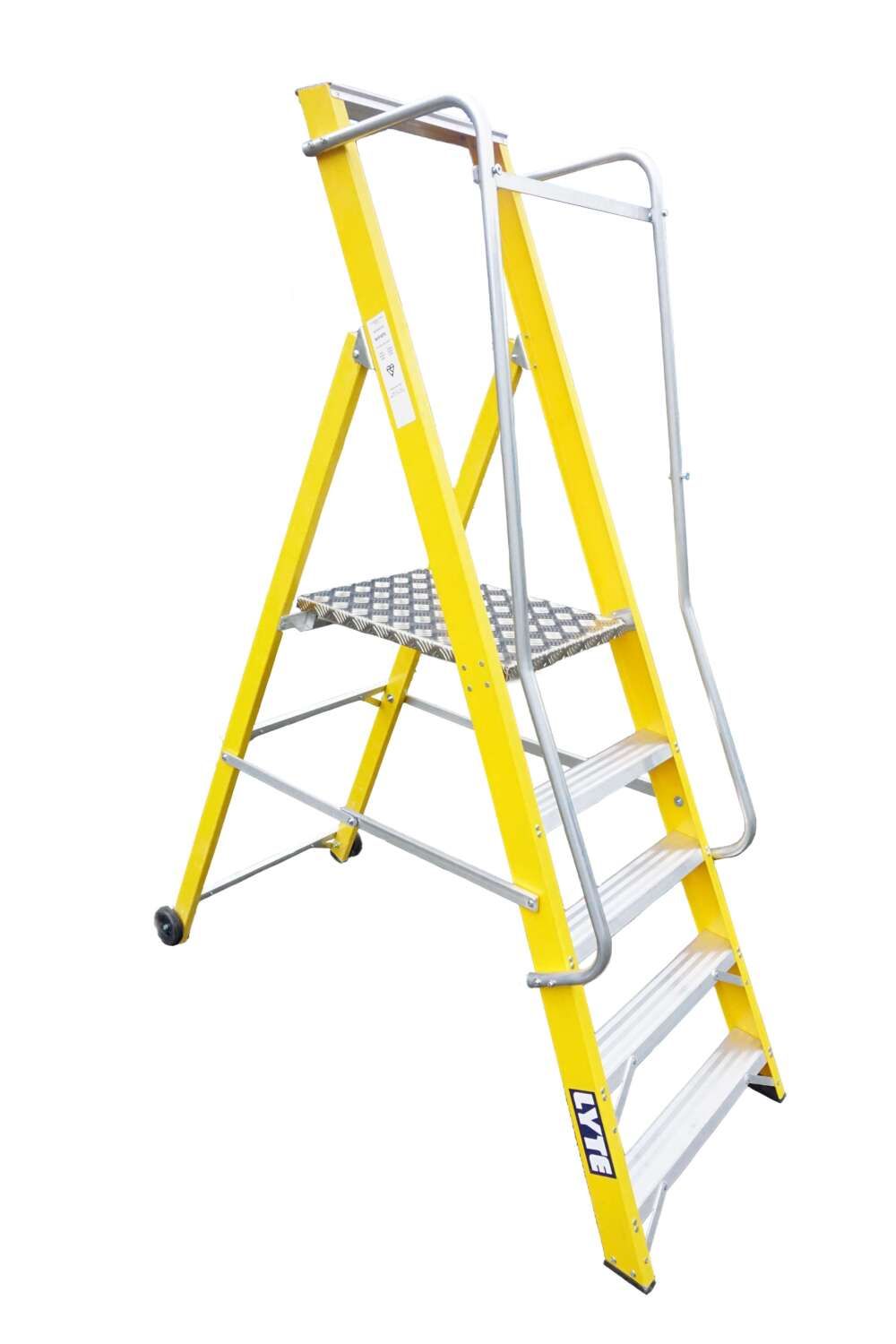

NYFWP5 5 14.0 2250 2050 1050 2800 650 1520 490 487 80 240

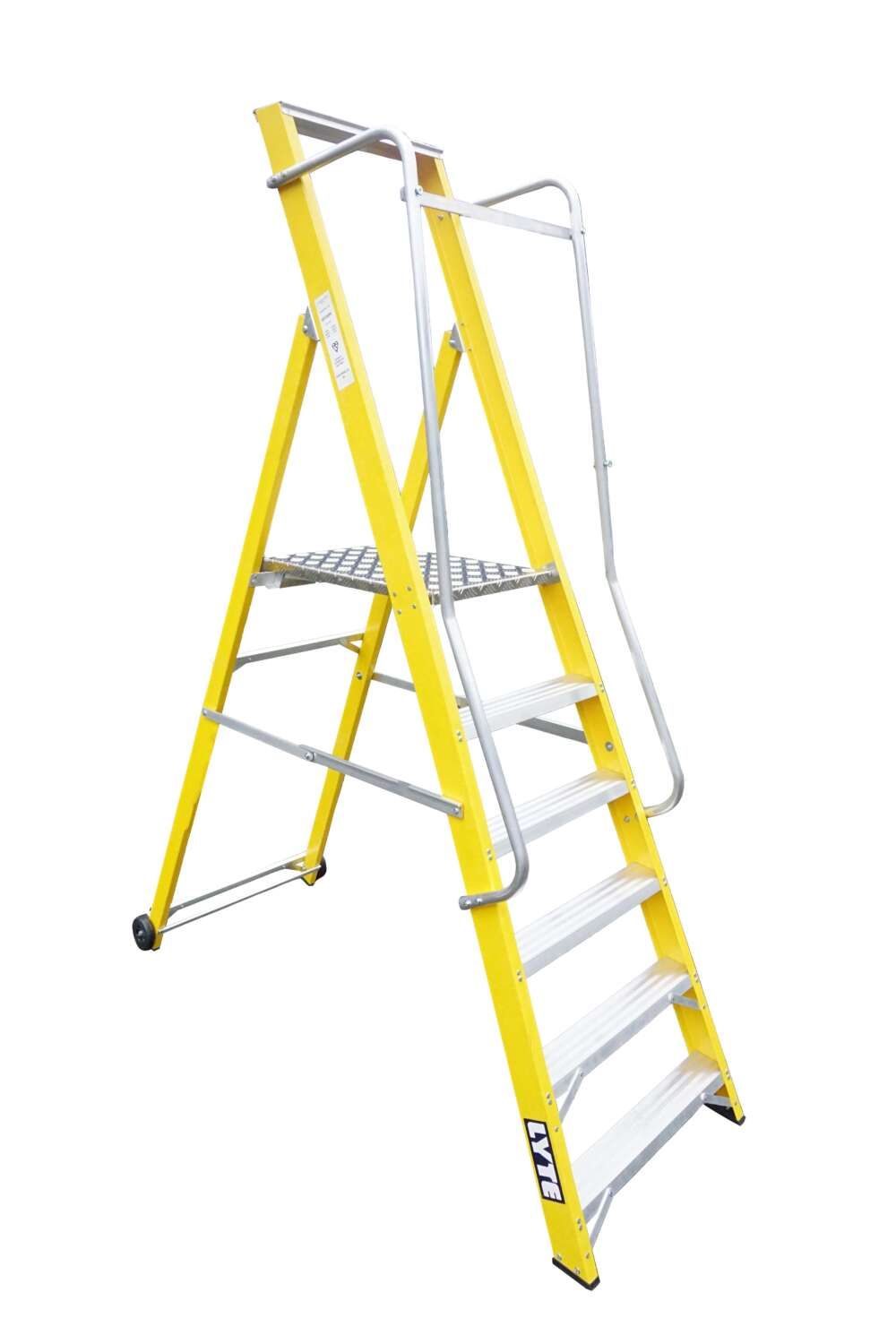

NYFWP6 6 16.0 2490 2260 1260 3010 680 1695 490 487 80 240

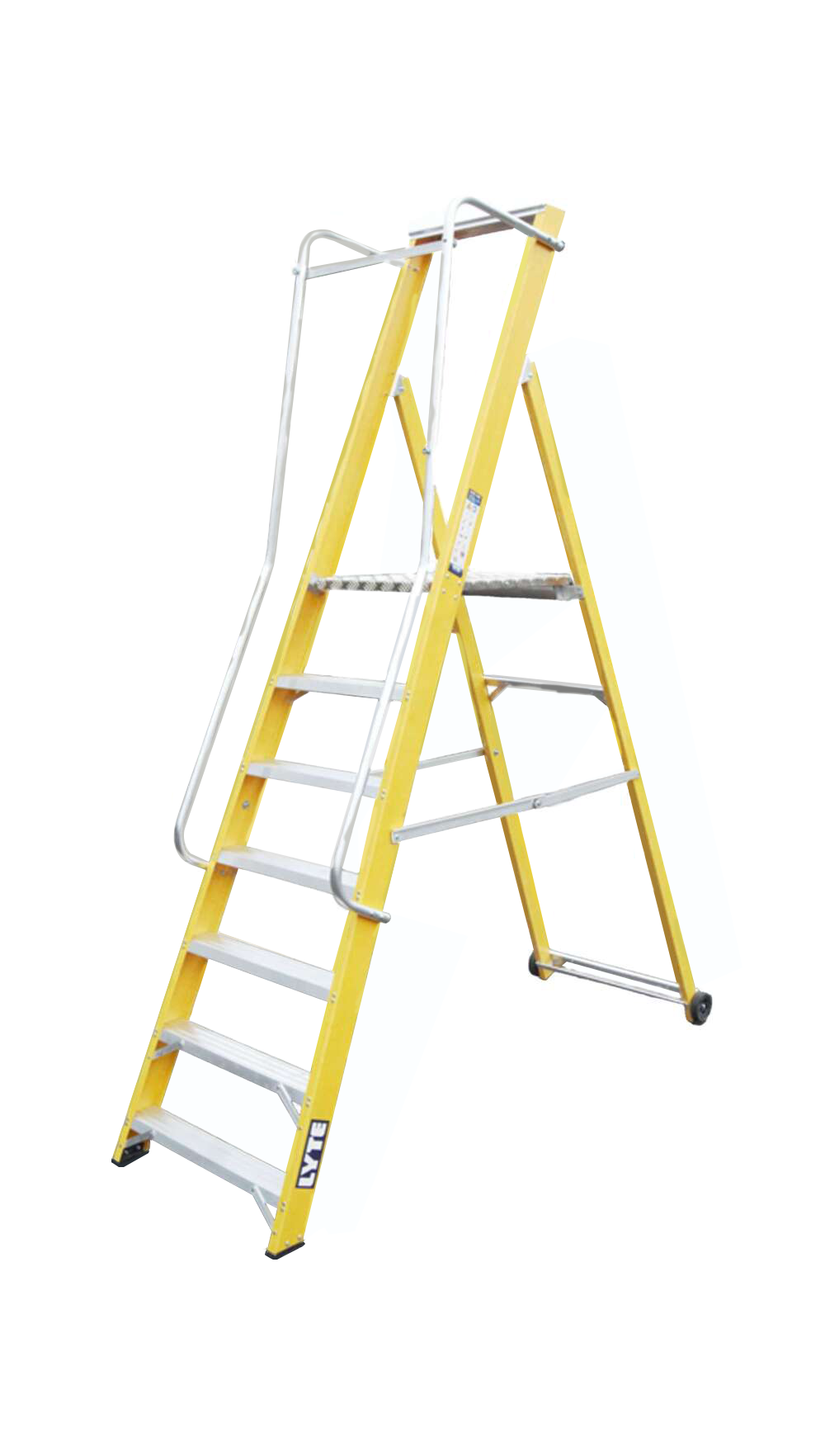

NYFWP7 7 18.0 2730 2470 1480 3230 690 1870 490 487 80 240

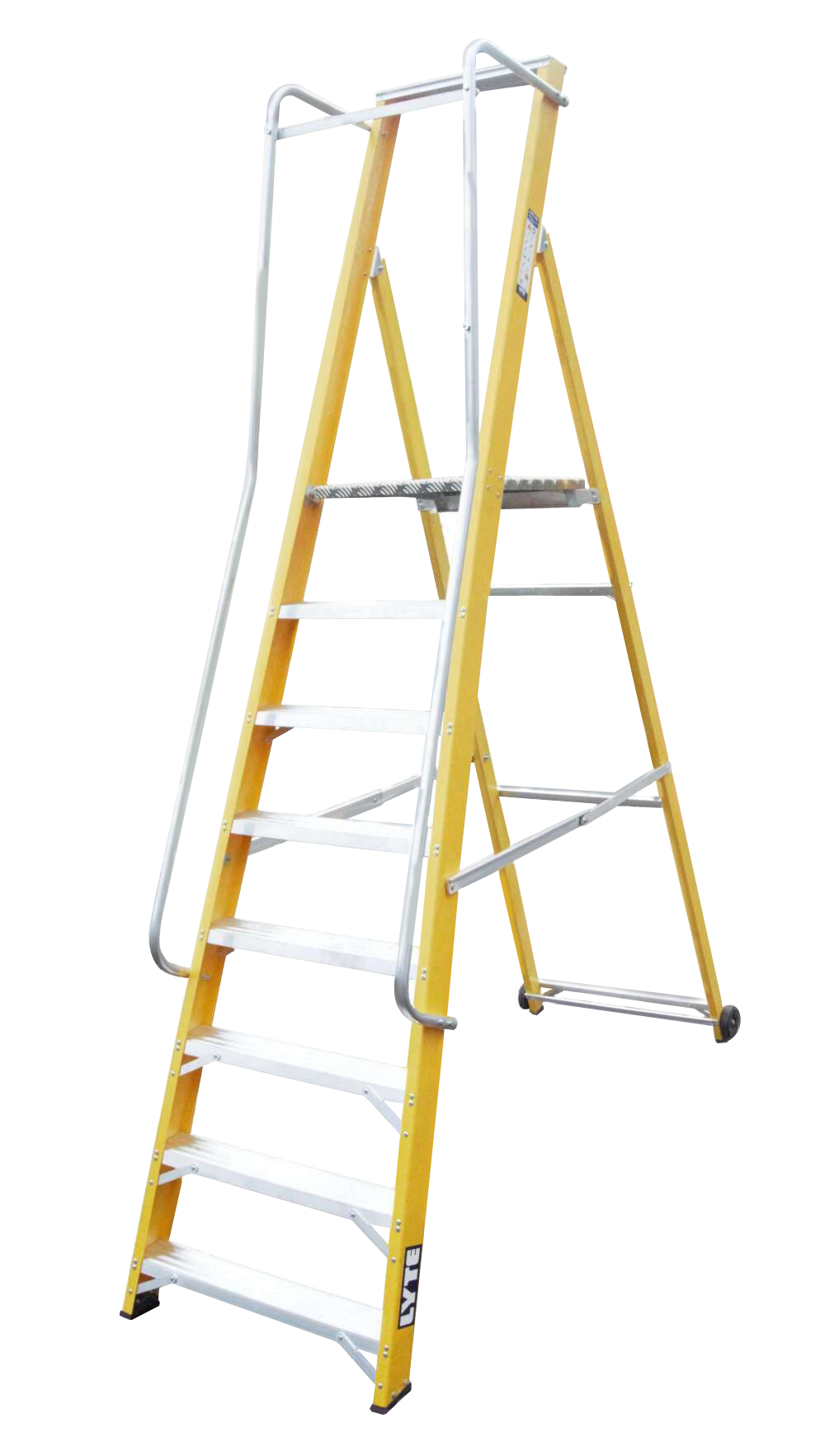

NYFWP8 8 20.0 2975 2700 1710 3460 720 1975 490 487 80 240

*Where applicable, the Approx. Working Height is calculated by adding 1750mm (5’8”) to the Platform Height.

**Widestep Closed Ladder Depth measured with handrail included.
