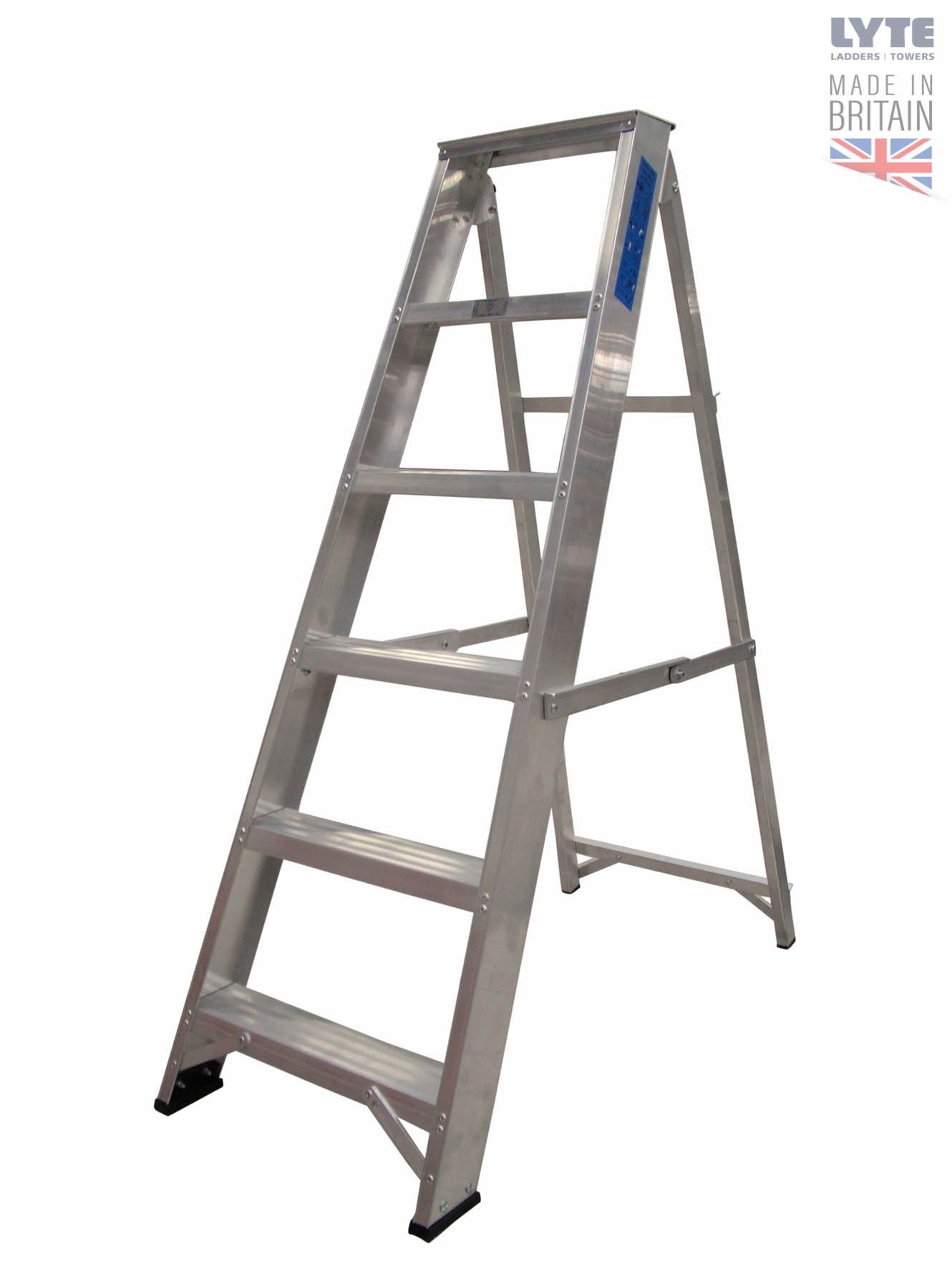

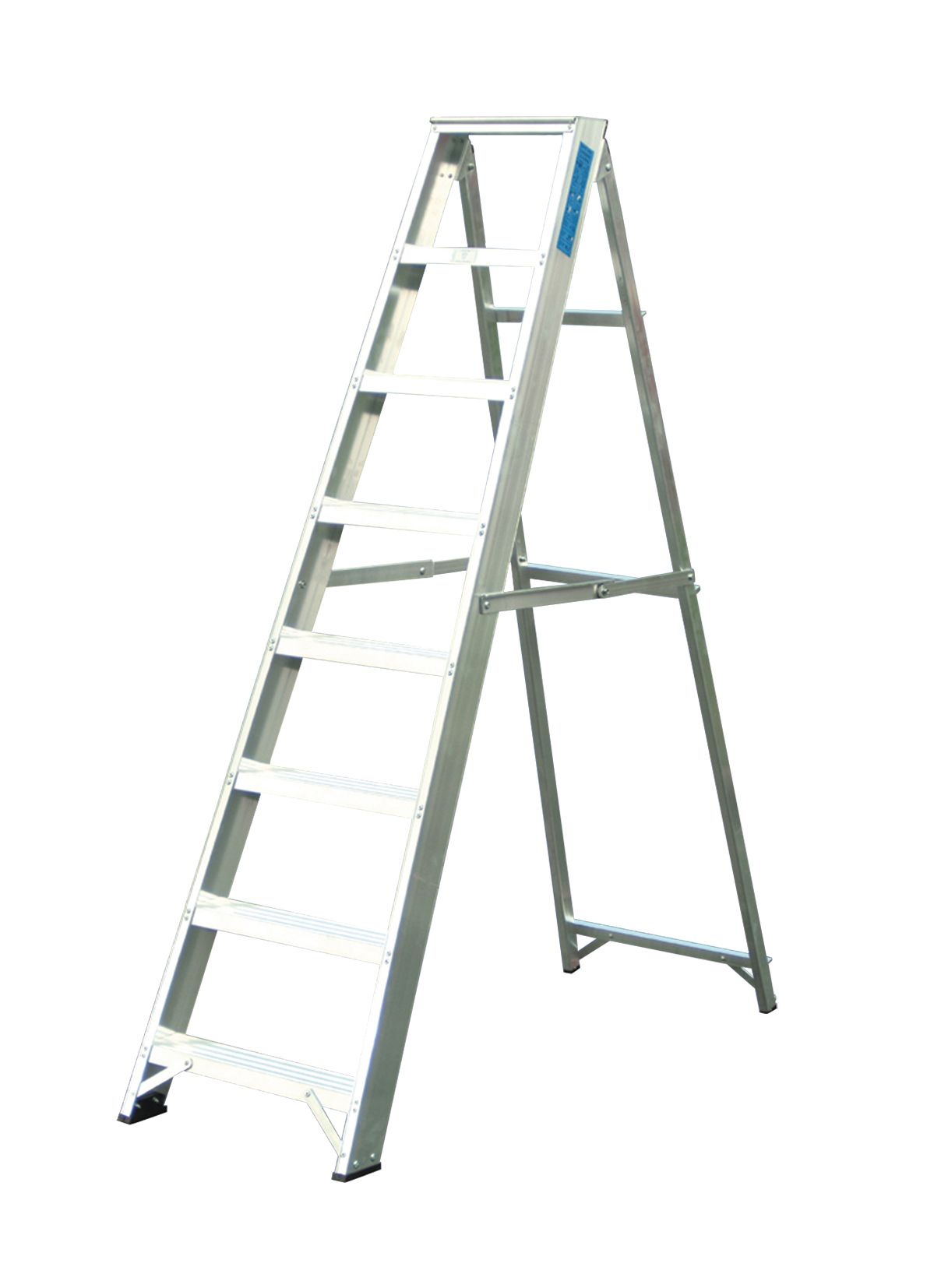

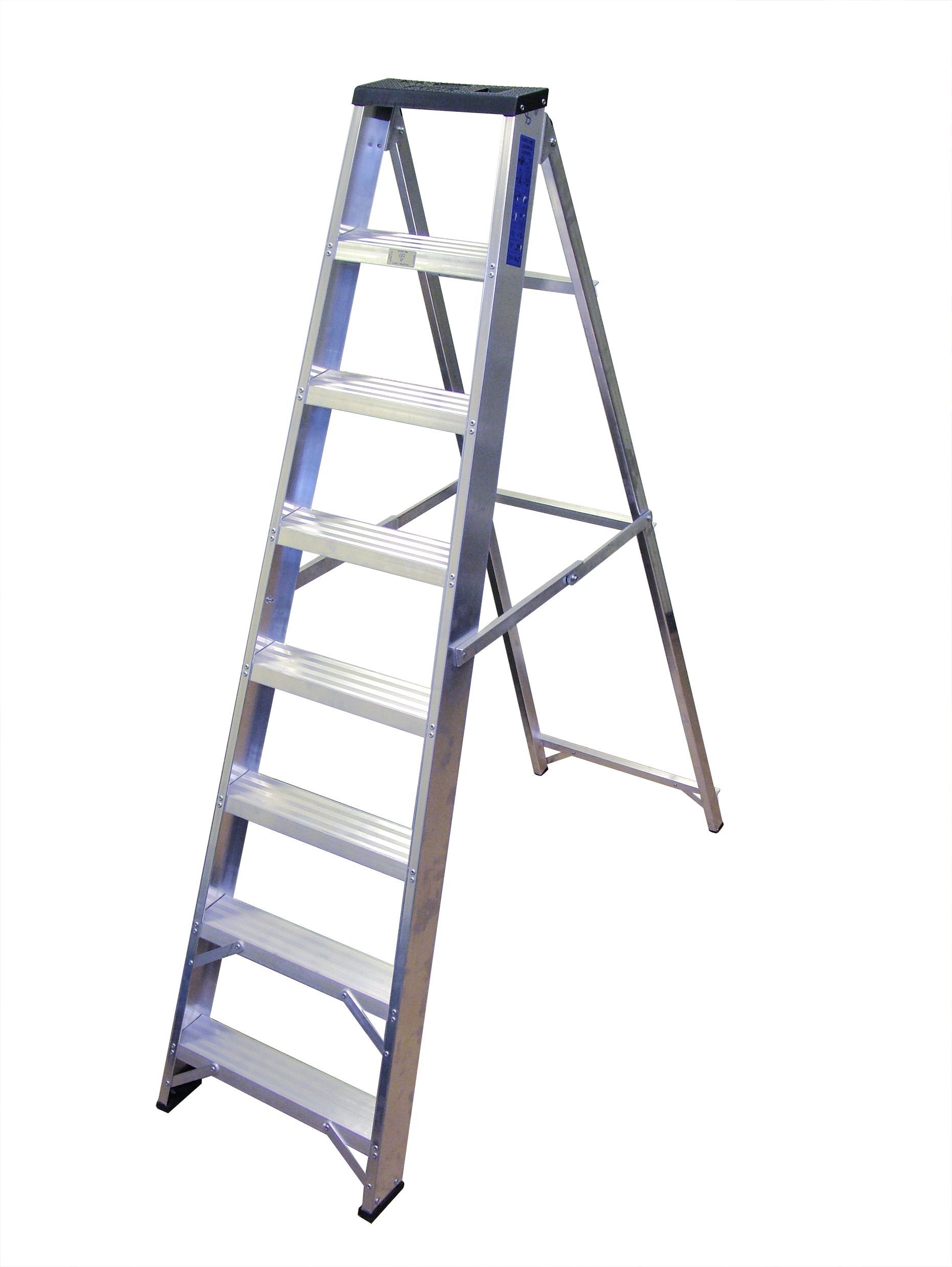

Aluminium Swingback Stepladders

NESS & NBSBB Series

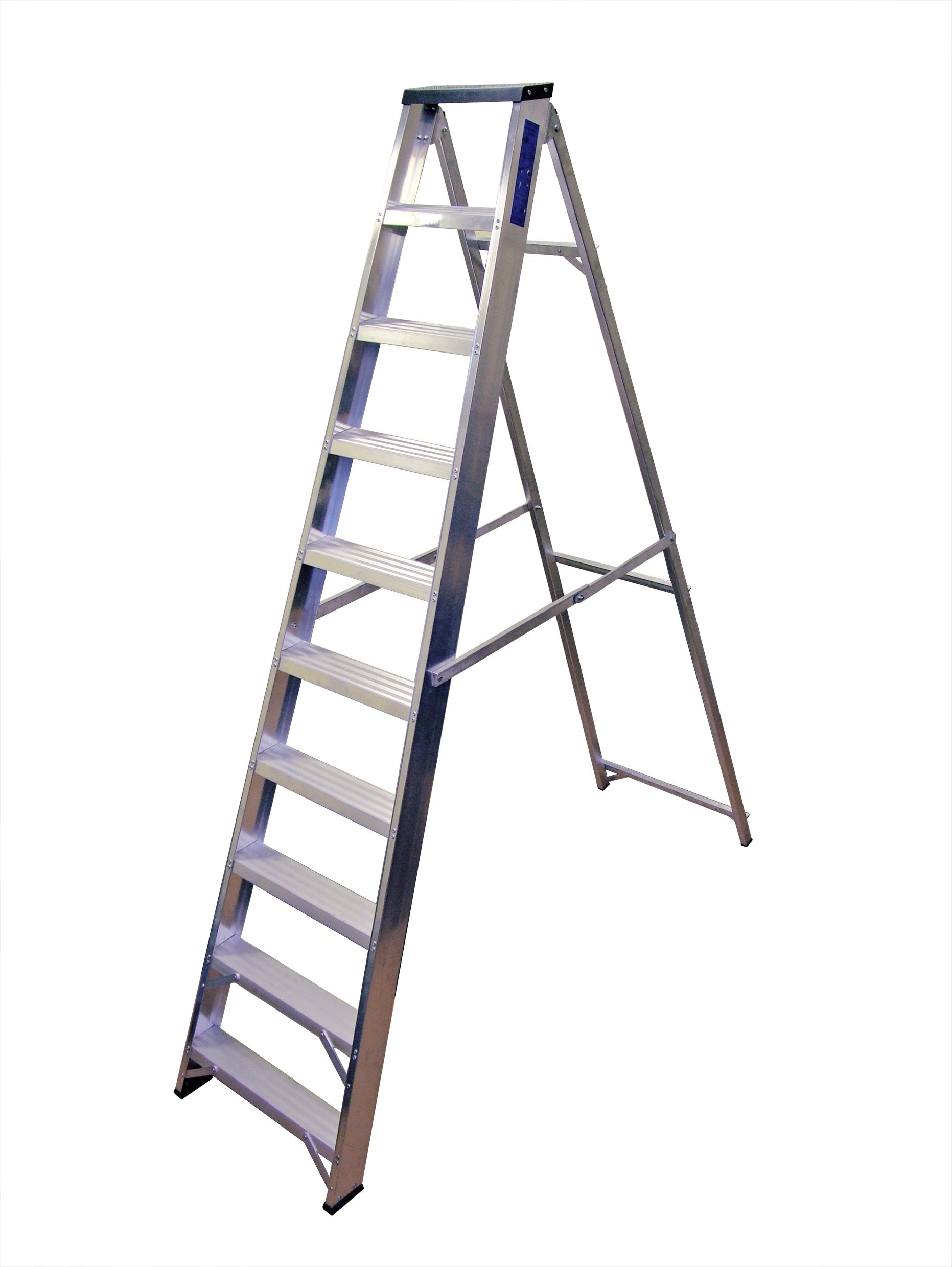

An aluminum ladder is sitting on a white surface.
A logo for lyte en131 professional is shown on a white background.
A logo for bsi iso 9001 quality management systems certified

Achieve superior safety and durability with the Industrial Swingback Stepladders, certified to EN131-2 Professional standards. Built for strength and reliability, these UK-made ladders are perfect for demanding industrial environments.

Key Benefits

  • Enhanced Stability: Features improved stiles and rigid box section back legs , with additional cross braces and “K” straps for added strength and stability.
  • Non-Slip Safety: Incorporates a unique strengthening beam and non-slip treads with rubber feet to prevent twisting and slipping.
  • Durability Tested: Tested to 50,000 cycles, ensuring long-lasting performance.
  • Convenient Design: Lightweight and compact for easy transport and storage.
  • High Load Capacity: Supports up to 150kg Maximum Load Capacity.
  • Optional Extras: Choose from versions with a tool tray (NBSBB) or without a tool tray (NESS), or with added handrails (NESS /HRAILS)

Available in 14 sizes

Code No. of Treads Weight kg Closed Height mm Open Height mm Max Standing Height mm* Approx. Working Height mm* Base Ladder Width mm Base Depth When Open mm Closed Ladder Depth mm Top Ladder Width mm Depth of tread Space Between Treads Tool Tray Included Handrail Option Available

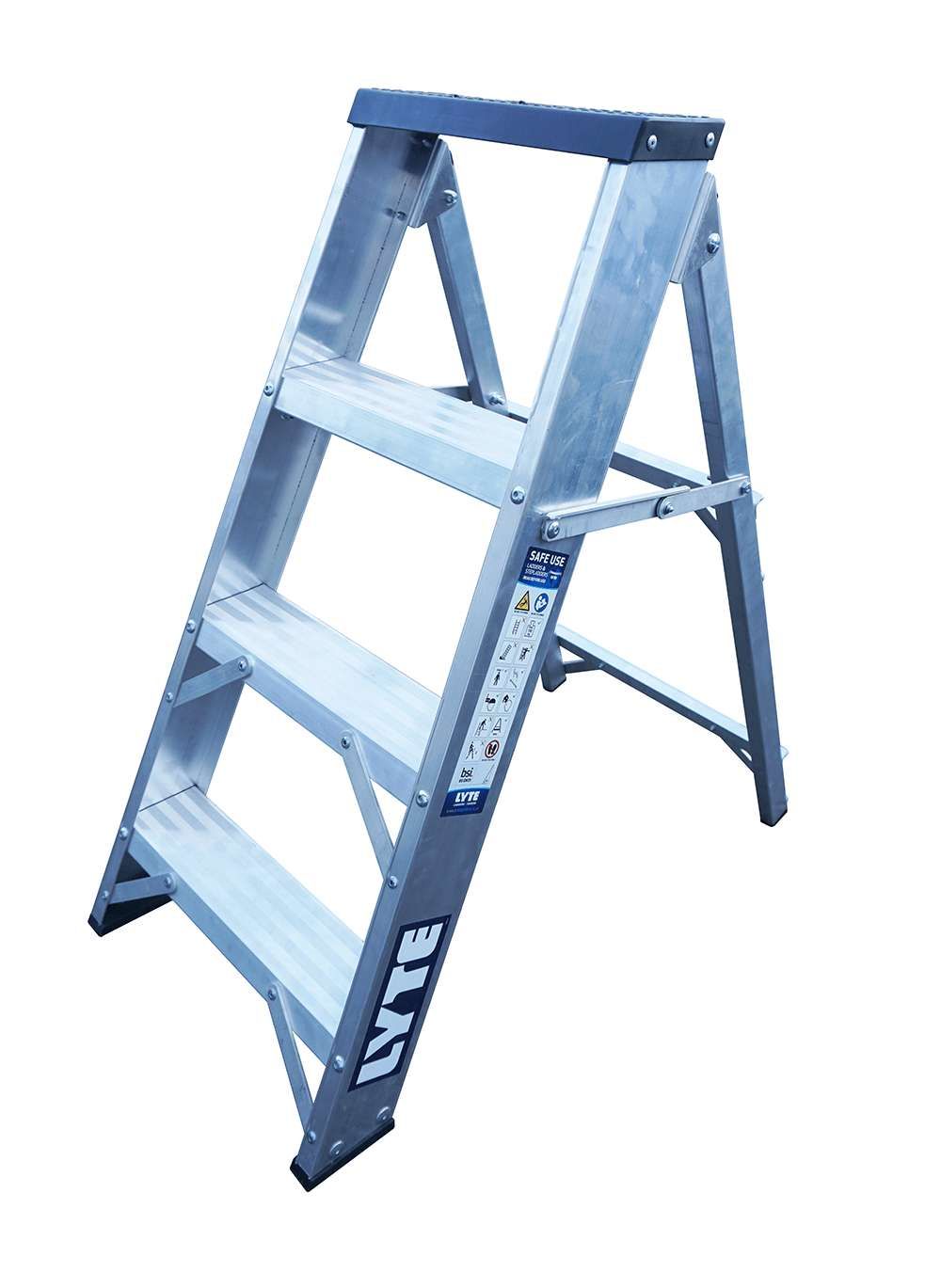

NBSBB4 3 3.5 901 795 130 1880 400 745 145 315 80 240 Yes No
NBSBB5 4 5.0 1114 1010 345 2095 420 795 145 315 80 240 Yes No
NBSBB6 5 5.5 1380 1235 565 2315 448 955 145 315 80 240 Yes No

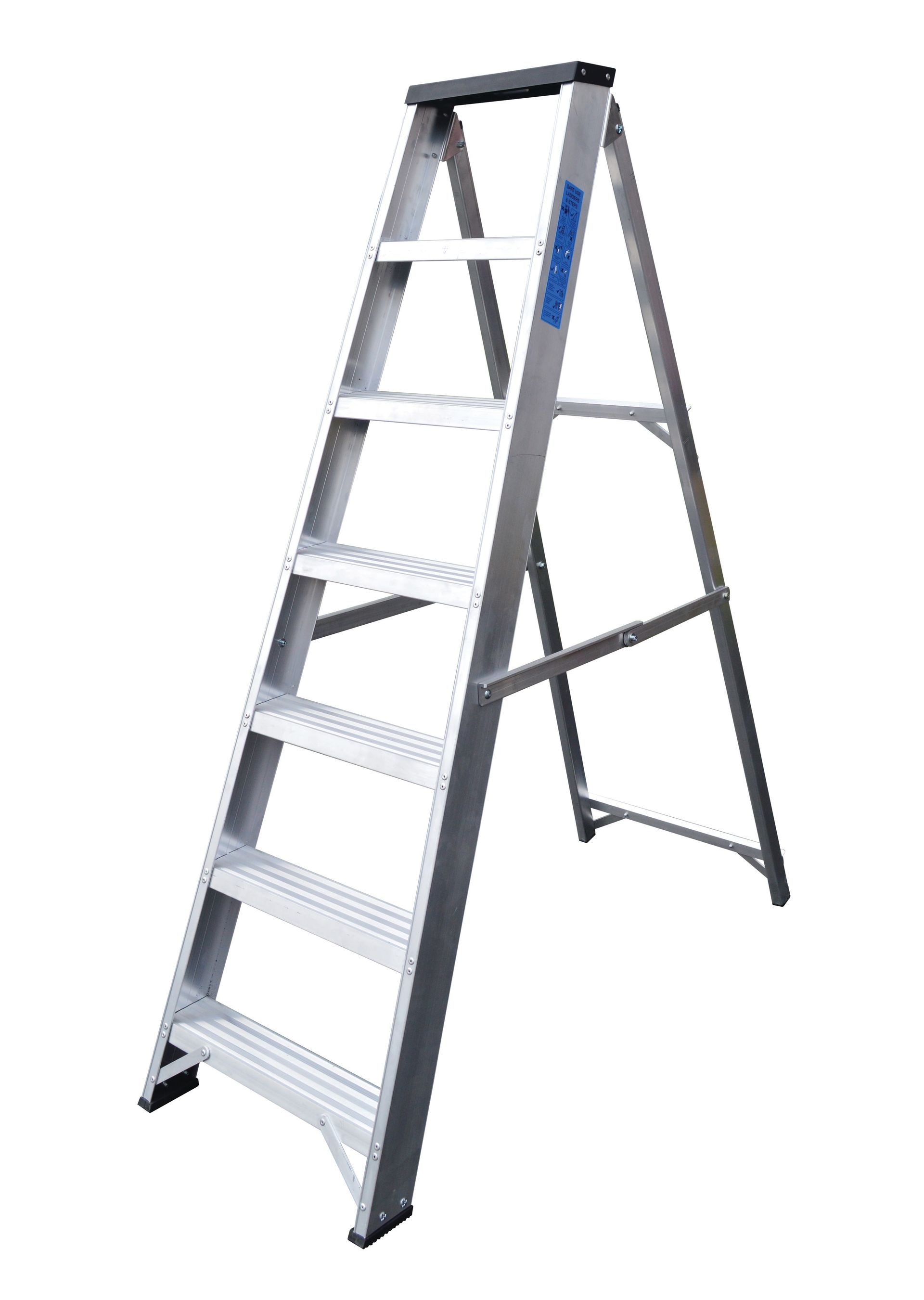

NBSBB7 6 6.0 1620 1445 785 2535 472 1145 145 315 80 240 Yes No
NBSBB8 7 7.5 1860 1680 1005 2755 496 1310 145 315 80 240 Yes No
NBSBB10 9 9.0 2340 2135 1445 3195 550 1630 145 315 80 240 Yes No

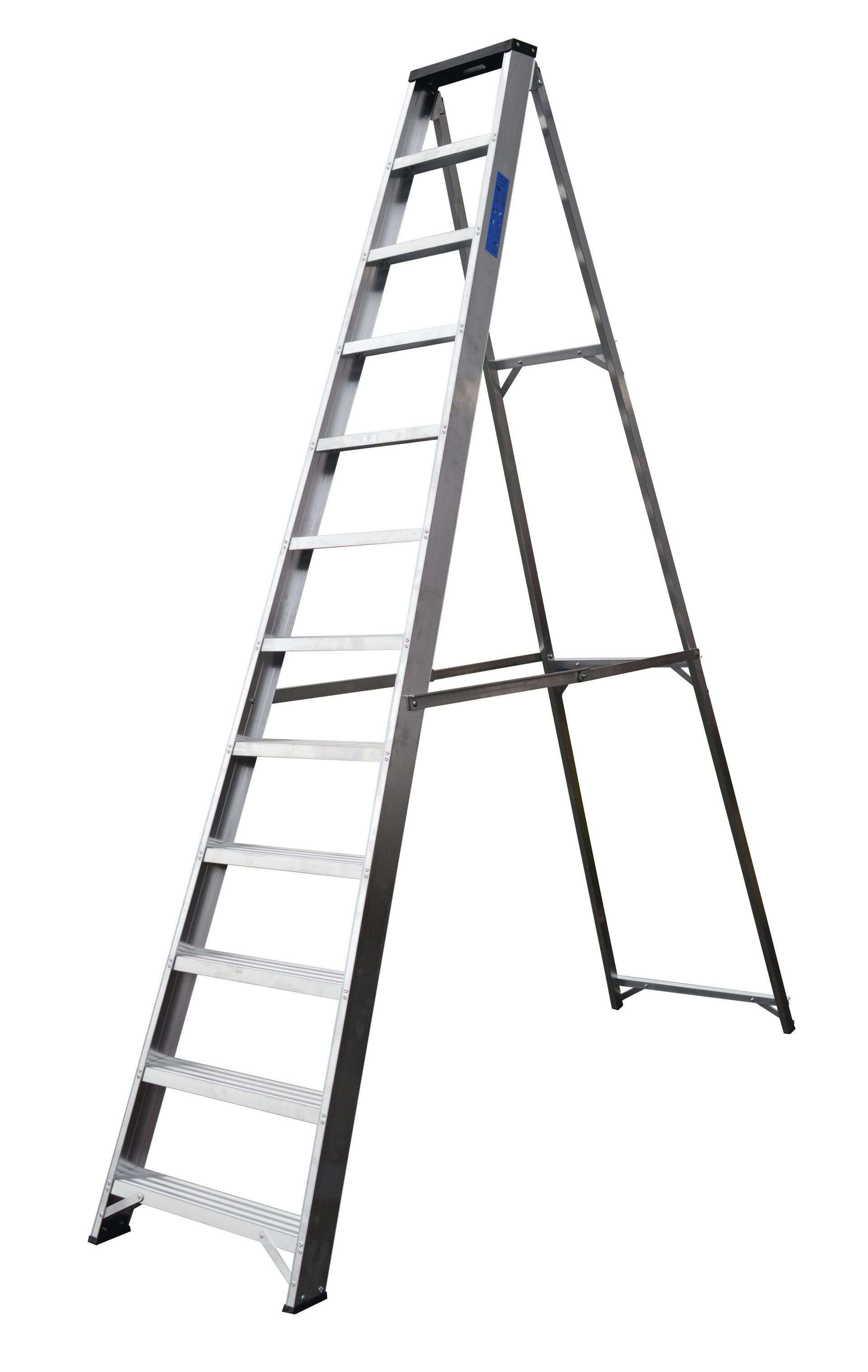

NBSBB12 11 11.5 2815 2555 1885 3635 595 2000 145 315 80 240 Yes No

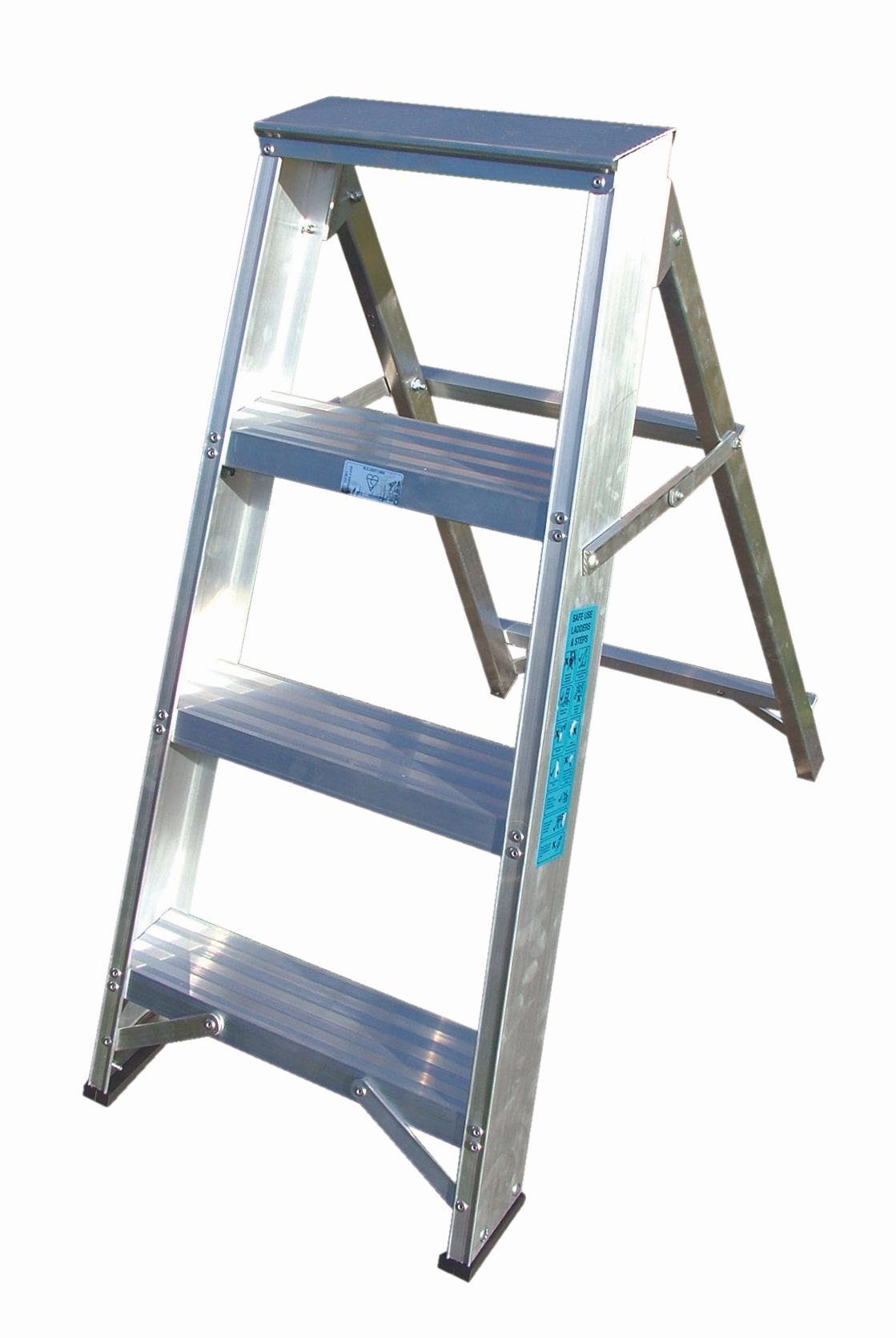

NESS4 4 3.5 900 795 130 1880 400 740 145 310 80 240 No Yes

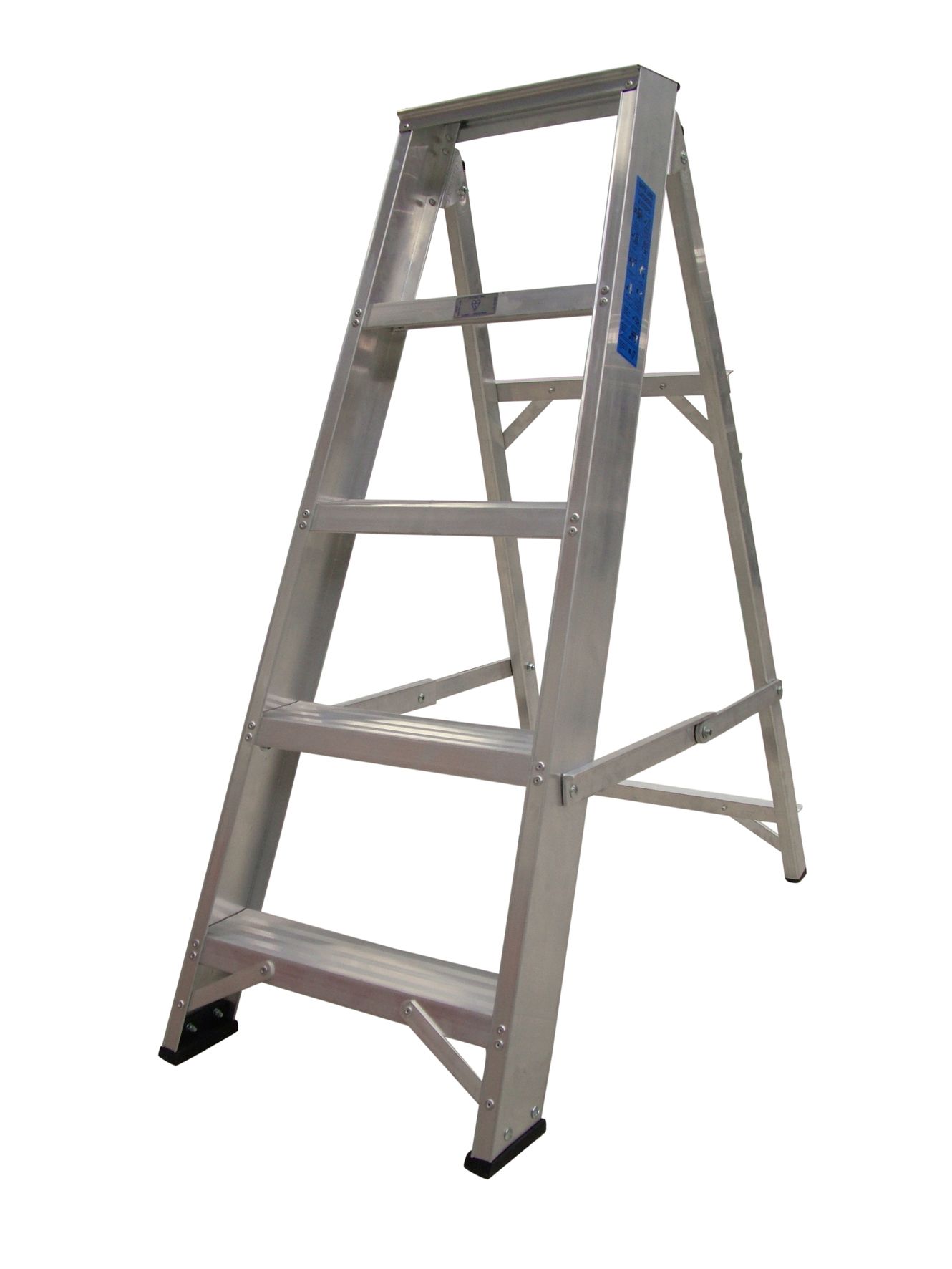

NESS5 5 4.5 1140 1010 345 2095 425 800 145 310 80 240 No Yes
NESS6 6 5.5 1380 1235 565 2315 445 970 145 310 80 240 No Yes

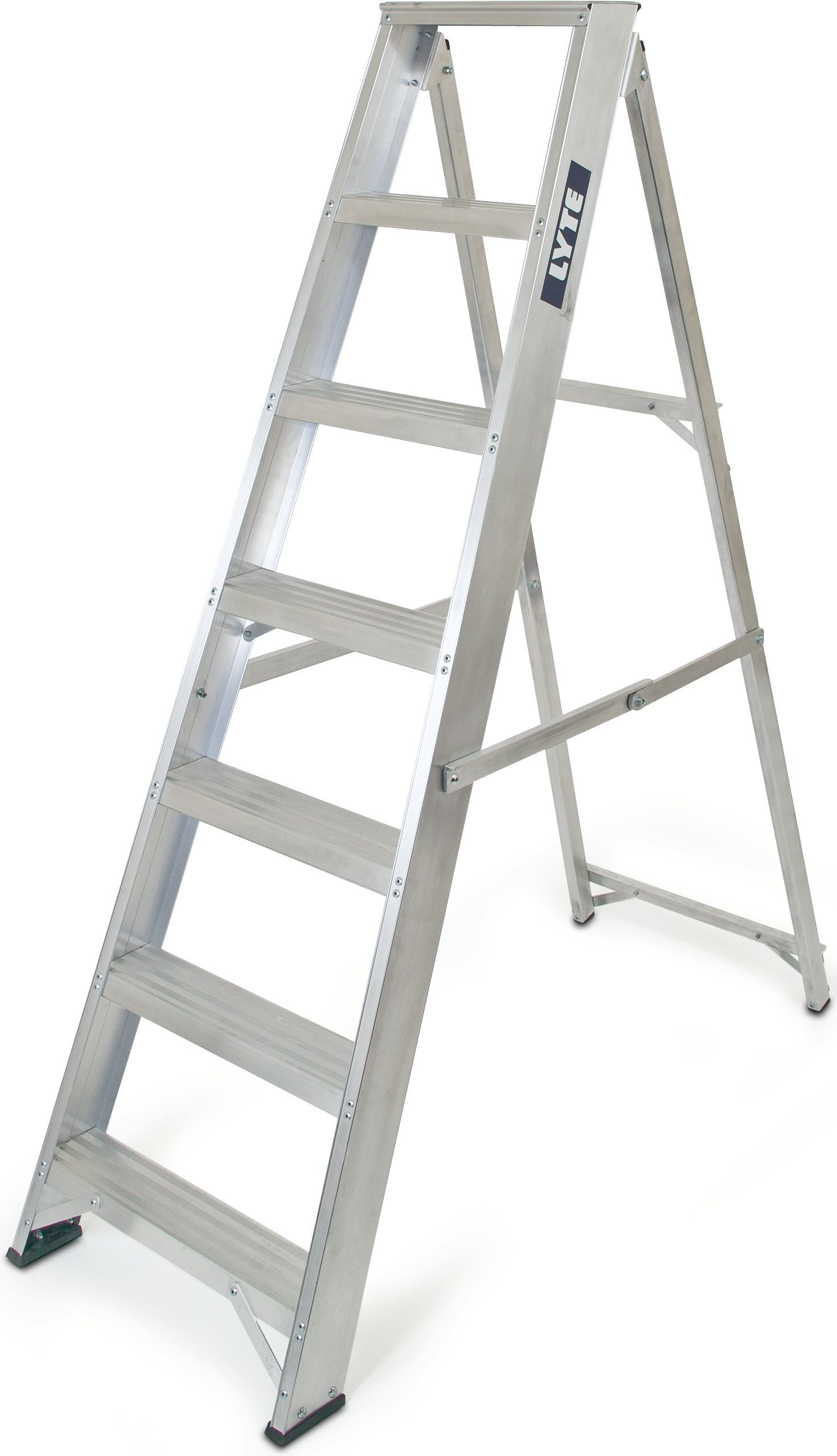

NESS7 7 6.0 1620 1455 785 2535 470 1145 145 310 80 240 No Yes
NESS8 8 7.0 1860 1680 1005 2755 495 1315 145 310 80 240 No Yes

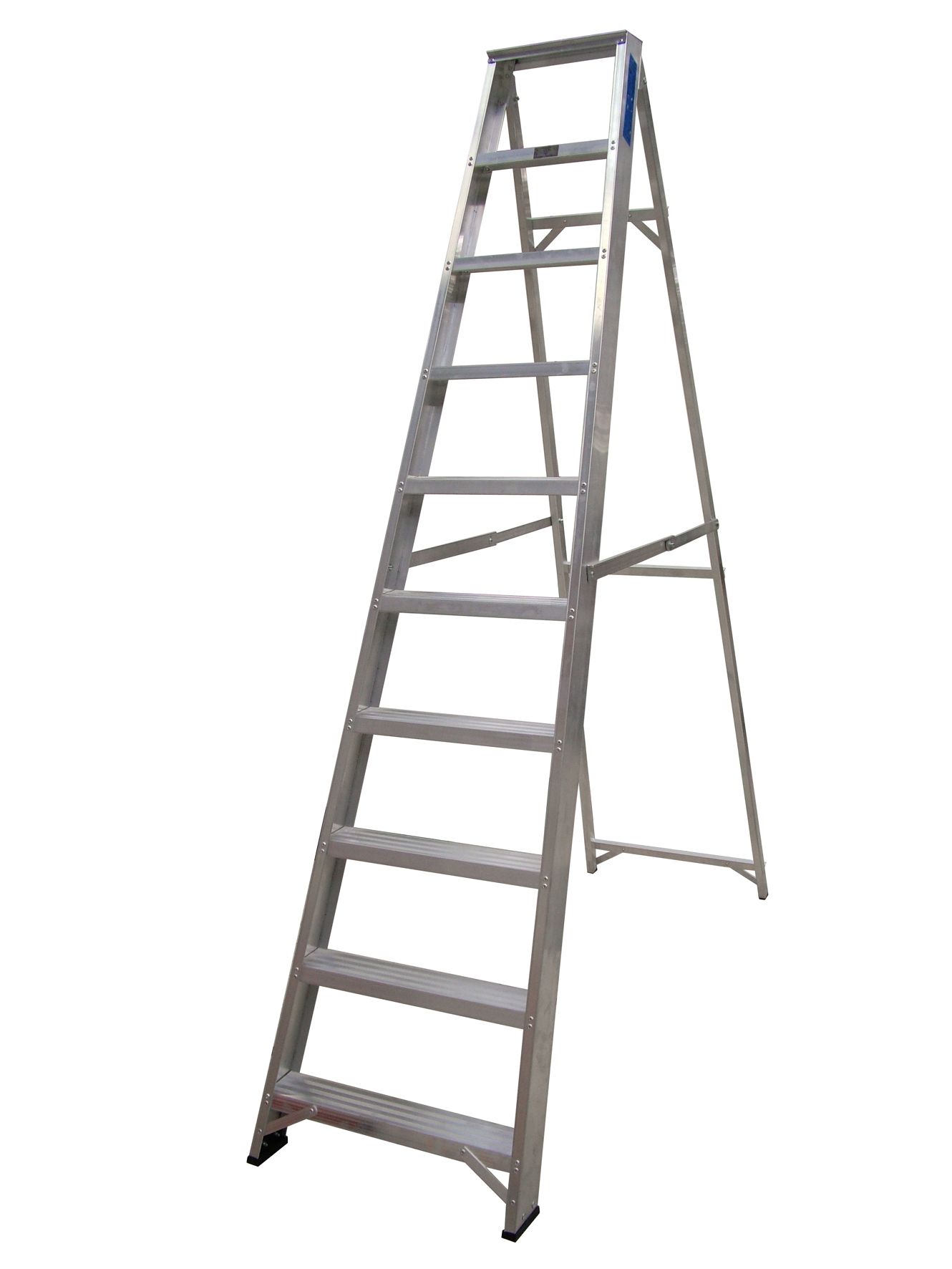

NESS10 10 9.5 2335 2140 1445 3195 550 1630 145 310 80 240 No Yes

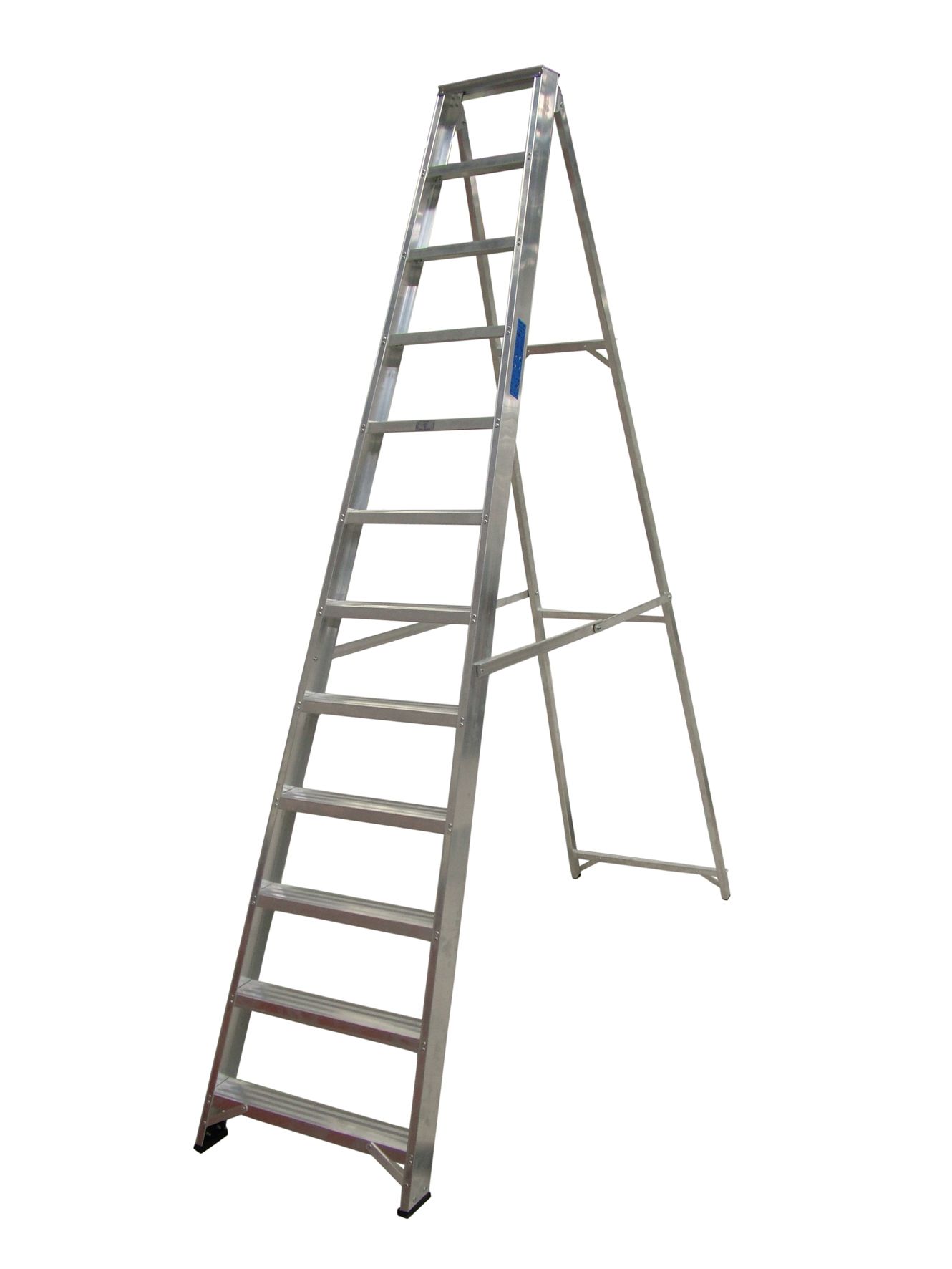

NESS12 12 11.0 2820 2555 1885 3635 600 2000 145 310 80 240 No Yes

*Where applicable, the Approx. Working Height is calculated by adding 1750mm (5’8”) to the Max Standing Height.
